Author Topic: Redline Spindle Options...  (Read 1859 times)

0 Members and 1 Guest are viewing this topic.

GREMLIN

  • Guest
Redline Spindle Options...
« on: May 19, 2009, 05:31 PM »
Hi lads,

I know the answers for this are dotted around the archives, but it'd be nice to get a straight answer or two to this...
I have a set of 401's, full wrap/single pinch, which has an original dimpled spindle for an open bearing bottom bracket.

I've just sourced a TA as my final build, which my 401's are going to be installed on, and I would like to get a sealed bottom bracket set-up on it.
Nice silky smooth bottom bracket,  mmmm.

So...
Do the new twin pinch spindles fit the old crank arms with no issues at all?
Will my dimpled spindle bolts/hardware fit the new school spindle or not?
Any idea's on where I could source a spindle inc b.b to get the job done?

Many thanx,  G.  :daumenhoch:

GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #1 on: May 19, 2009, 05:55 PM »
Right I just had a thought.

I have just remembered I have a pair of Profile sealed bearings and cups that I had fitted to one of my Harry Leary Turbo's when i received it.
They could do with a clean up, but are in pretty good condition.
So that's the bottom bracket taken care of, and it just comes down to sourcing a spindle now.
If there is an issue with the dimensions of the Profile bearings and the spindle I would just source a set of sealed bearings to suit.  :daumenhoch:  G.

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #2 on: May 19, 2009, 07:15 PM »
Can't you just get a sealed bb for your dimpled spindle?

GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #3 on: May 19, 2009, 07:25 PM »
Can't you just get a sealed bb for your dimpled spindle?

I did actualy think of that, but I don't recall ever seeing a 28tpi sealed bearing conversion for a Redline spindle. Are they out there?  ???
If we're talking Hadley, then they're rare and expensive. The rare part is the main issue tho, as finding a sweet set outweighs price (within reason)  :daumenhoch:  G.

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #4 on: May 19, 2009, 07:28 PM »
They are out there cause i have one here .. i just checked out a set of 401's i got here and it has a sealed bb set on it.   Not sure what it is though

GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #5 on: May 19, 2009, 07:38 PM »
They are out there cause i have one here .. i just checked out a set of 401's i got here and it has a sealed bb set on it.   Not sure what it is though

Excellent, and Oh that's a pain m8.  Have you a pic there so we can try and establish a manafacturer?
Obviously if I could source a set for my dimpled spindle that would be a big plus  ;)   G.

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #6 on: May 19, 2009, 07:51 PM »

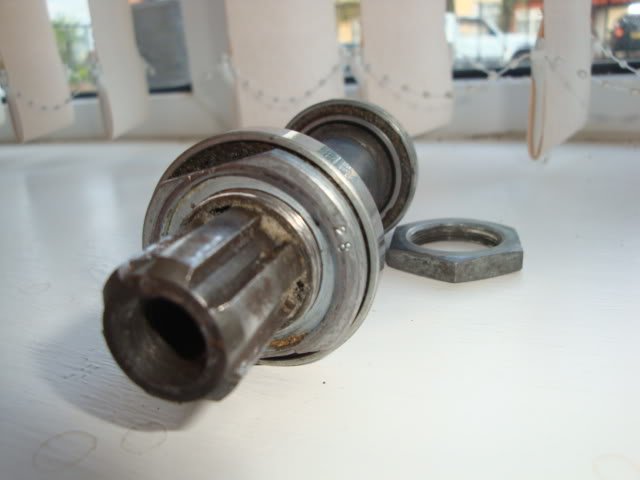

Ok here are the pics of the parts i got.  The crank arms and bearing cups are getting re-chromed at the mo .. there don't seem to be anything on them to give an idea of manufacturer though





GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #7 on: May 19, 2009, 08:00 PM »
Those look like Hadley to me  :)  G.

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #8 on: May 19, 2009, 08:05 PM »
Not sure .. this link shows some Hadley and they're different  ...  http://bmxmuseum.com/forums/viewtopic.php?id=114109

GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #9 on: May 19, 2009, 08:09 PM »
Check this link to Animals Hadley resto (bottom pics)  :)  G.

http://www.radbmx.co.uk/forum/index.php'topic=30816.0

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #10 on: May 19, 2009, 08:14 PM »
yeah they look like the cups i got too  ;)

Offline Bigplinky

  • Cherry Picker
  • ****
  • Posts: 1200
  • Rated:
Re: Redline Spindle Options...
« Reply #11 on: May 19, 2009, 08:14 PM »
You need either a Redline Techmatic (rare and expensive again) or the BB from a 90's set of Redlines. Ginny's and singlespeed shop used to stock these a few years ago but don't know if they have any left. The 90's Redline sealed spindle is a smaller diameter than a Profile spindle so those bearings won't work with it.

Best of luck I think I'd stick witha nice open BB

As far as I know the Taiwan Flights have more splines on the spindle than the old ones

Hope that helps

Andy
Why oh why do I still buy kids bikes!

GREMLIN

  • Guest
Re: Redline Spindle Options...
« Reply #12 on: May 19, 2009, 08:21 PM »
There you go Wildon m8, a nice little bonus on the day for you  >:D

I think that sticking with my open bearing set-up is going to be the way to go for now Andy.
Sourcing a Hadley or Techmatic bottom bracket can be my new treasure hunt  :daumenhoch:

Thanx,  G.  :)

Offline wildon

  • Flip-Whip
  • ******
  • Posts: 2105
  • Rated:
Re: Redline Spindle Options...
« Reply #13 on: May 19, 2009, 08:28 PM »
 yeah nice one.. thanks for that  :daumenhoch:
