Author Topic: fork repair using lead  (Read 855 times)

0 Members and 1 Guest are viewing this topic.

Offline sawzall

  • 540 Air
  • *******
  • Posts: 2793
  • Rated:
fork repair using lead
« on: July 12, 2008, 08:04 PM »
heres a few pics of some fork drop outs i repaired today using lead,before the days of plastic car body filler lead was used to repair dents fill seams and joints etc,i thought i would give it a go on some drop outs that had deep washer marks and it worked a treat  :)this sort of repair will only work if you are going to paint frame (not sure about powder)maybe dan would know???? lead is a much stronger repair and wont crack or shrink if it's applied properly,could also be used to fill dents etc ;)

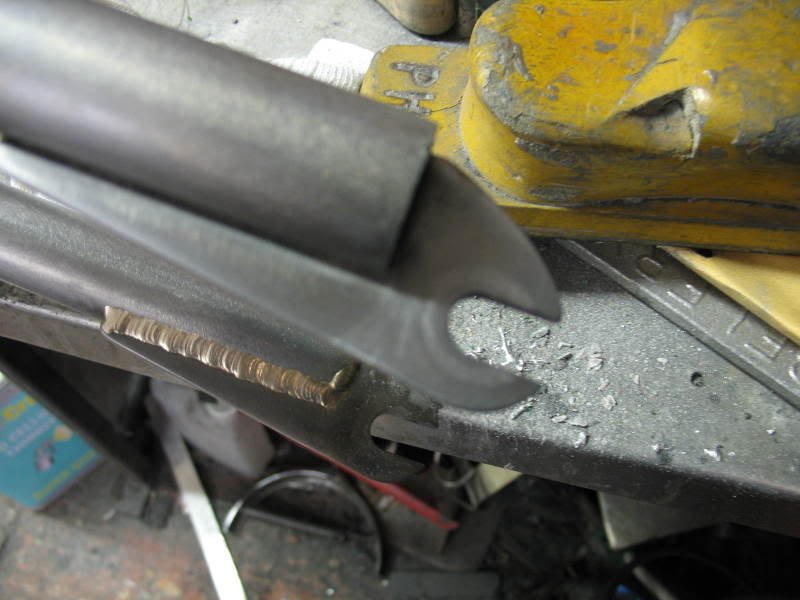

before....

applied lead.....

sanded down ready for paint....
British race frames and race clothing wanted

Offline MartyC

  • Berm Worm
  • ***********
  • Posts: 8755
  • Radder than a Rad thing on a Rad day; maybe?
  • Rated:
Re: fork repair using lead
« Reply #1 on: July 13, 2008, 03:06 AM »
Nice job, I would have thought that it can be powdered as lead conducts electricity  :daumenhoch:

Be interesting to find out if it can be chromed, I think it can but not certain about it  :-\.
« Last Edit: July 13, 2008, 08:57 AM by MartyC »


Better to crash and burn than fade away

Offline Bob_Acid

  • Team Admin
  • BMX Overlord
  • *
  • Posts: 17364
  • It's Bronked
  • Rated:
Re: fork repair using lead
« Reply #2 on: July 13, 2008, 03:33 AM »
Excellent job.   :daumenhoch:

firebird4130

  • Guest
Re: fork repair using lead
« Reply #3 on: July 13, 2008, 11:55 AM »
How is that done then? Where do you get the lead?

cheers

Offline sawzall

  • 540 Air
  • *******
  • Posts: 2793
  • Rated:
Re: fork repair using lead
« Reply #4 on: July 13, 2008, 07:04 PM »
fraz you have to clean metal until its nice and shiney then tin the surface with solder paint using a blow torch, warm up lead and spread over repaired area which has been tinned using a wooden paddle lubricated with tallow(fat),it wont stick if it's not tinned first, once its applied just sand down using production paper 80-then 180 grit,its a lot more involved than plastic filler but will last ;)
you can get the lead etc from body shop suppliers,
« Last Edit: July 13, 2008, 07:06 PM by sawzall »
British race frames and race clothing wanted

Offline pickle

  • Site Supporter
  • My life is Radbmx
  • *
  • Posts: I am a geek!!
  • Rated:
Re: fork repair using lead
« Reply #5 on: July 13, 2008, 08:19 PM »
looking good Phil (as usual) but couldn't you get the lead from old burner tubes?   ;)

firebird4130

  • Guest
Re: fork repair using lead
« Reply #6 on: July 13, 2008, 10:21 PM »
cool might give that a go on some dropouts ,thanks for the info  :daumenhoch:

Offline jT Racing

  • BMX Overlord
  • ***********
  • Posts: 17338
  • i like bikes. :/
  • Rated:
Re: fork repair using lead
« Reply #7 on: July 14, 2008, 08:34 PM »
it's good untill the first time you tighten a nut and the soft lead distortes again. better use a really big assed washer.
ding dong

gjs

  • Guest
Re: fork repair using lead
« Reply #8 on: July 14, 2008, 09:33 PM »
what does lead melt at,and how hot is the oven for powder coating :LolLolLolLol:

davie1967

  • Guest
Re: fork repair using lead
« Reply #9 on: July 15, 2008, 08:35 PM »
Nice job there. a word of warning about lead though. its very toxic and breathing the fumes is not recommended. if you dont know what your doing i would suggest not trying it . if the lead when melting/melted comes into contact with water it can explode.
 we use it in the blacksmith trade for securing raikings etc.

Offline pkradman

  • Posts: -1000
  • Rated:
Re: fork repair using lead
« Reply #10 on: July 16, 2008, 10:37 PM »
 :LolLolLolLol: fookin ell health and saftey at its best here ... oh and btw answer to the qestion "where do u get the lead from "  ....... church roofs ffs ! :daumenhoch:

Offline jT Racing

  • BMX Overlord
  • ***********
  • Posts: 17338
  • i like bikes. :/
  • Rated:
Re: fork repair using lead
« Reply #11 on: July 18, 2008, 04:37 PM »
what does lead melt at,and how hot is the oven for powder coating :LolLolLolLol:

about 350-400 and about 160-180 i think. but i could just be guessing.
ding dong

Offline double chevron

  • 540 Air
  • *******
  • Posts: 2863
  • Rated:
Re: fork repair using lead
« Reply #12 on: July 18, 2008, 05:11 PM »
Nice clean job Phil.
But what's up when you fit wheels again?
Can they be bolted tightly or will dropouts go back to their original mis-shape ?
Lead is quite a soft material

Offline sawzall

  • 540 Air
  • *******
  • Posts: 2793
  • Rated:
Re: fork repair using lead
« Reply #13 on: July 18, 2008, 05:39 PM »
i will fit a washer before nuts are tightened and its only on a show pony,the lead is usually used on car body work and is quite robust ;) it would also be good for filling large dents that wont pull out,
« Last Edit: July 18, 2008, 05:42 PM by sawzall »
British race frames and race clothing wanted
