Author Topic: Hoffman Super fork!  (Read 1659 times)

0 Members and 2 Guests are viewing this topic.

Capt Canuck

  • Guest
Hoffman Super fork!
« on: December 05, 2007, 04:38 PM »

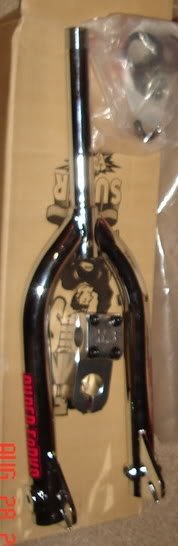

So yesterday i got my NOS superfork in the mail.

I found that the stem won't slide on the steerer tube and the top nut won't thread on the chromed over threads.

Anyone used one of these?

And it's HEAVY!!!! Must be about 5pds

Offline TwoBobRob

  • Site Supporter
  • 900 Air
  • *
  • Posts: 3713
  • Rated:
Re: Hoffman Super fork!
« Reply #1 on: December 05, 2007, 04:45 PM »
It's nothing daft like you have a 1" stem, but 1 1/8"th forks is it?  And I was unaware that steerer tubes and threads got chromed....

Sling a photo up.   :)

Capt Canuck

  • Guest
Re: Hoffman Super fork!
« Reply #2 on: December 05, 2007, 05:50 PM »
Actually i tried a 1 1/8 stem and it was to big. So the fork is a 1inch.

Offline harris

  • Founding Fathers
  • Hoffman's Love Child
  • *
  • Posts: 23607
  • Rated:
Re: Hoffman Super fork!
« Reply #3 on: December 05, 2007, 05:57 PM »
pop around mine matey and i will sort it one way or they other   ;)   see you in about 8 hours
i cant see what is wrong ,how tight is the stem does it just need the bolt loosening and the slot opening up a tad.

kcmobmx

  • Guest
Re: Hoffman Super fork!
« Reply #4 on: December 05, 2007, 06:00 PM »
I opened one of mine. I was able to install the stem but the nut didn't want to go on. look at the top thread. it looks like mabe filing a notch might help...

Capt Canuck

  • Guest
Re: Hoffman Super fork!
« Reply #5 on: December 05, 2007, 07:16 PM »
Ok1 i just check it out again and I tried putting the stem on the steerer tube. I removed the rear bolts. It won't open up any more. so i tried turning the stem on. it's tight enough it threaded the inside of the stem. LOL!

kcmobmx

  • Guest
Re: Hoffman Super fork!
« Reply #6 on: December 05, 2007, 07:20 PM »
sorry you are having difficulties. mabe try filing out the stem a bit? I had no idea there was a problem.

Offline harris

  • Founding Fathers
  • Hoffman's Love Child
  • *
  • Posts: 23607
  • Rated:
Re: Hoffman Super fork!
« Reply #7 on: December 05, 2007, 07:21 PM »
connor how far down are you putting the stem,it just sits on the blank none threaded part.
put a screw driver in the slot and open it up a tad  but do it from under neath so not to mark it.

Capt Canuck

  • Guest
Re: Hoffman Super fork!
« Reply #8 on: December 05, 2007, 07:35 PM »
Jacob! No worries bro!

Dan. the stem won't go over the threaded part. I was able to turn the stem on the threads made threads inside the stem
I tried to open it up but it wouldn't budge

Offline harris

  • Founding Fathers
  • Hoffman's Love Child
  • *
  • Posts: 23607
  • Rated:
Re: Hoffman Super fork!
« Reply #9 on: December 05, 2007, 07:37 PM »
the stem shouldnt go past the threads it just sits up on top .
i think im missing something mate im confussed   ???

Capt Canuck

  • Guest
Re: Hoffman Super fork!
« Reply #10 on: December 05, 2007, 07:52 PM »
LOL! it's hard to explain I guess.

I'm saying the stem should just slide on right? then you tighten up the bolts on the back but you also need to thread on the top bolt.
on this fork the threads are at the top of the steerer tube like a regular 1inch threaded fork.  this stem will not fit one so you can thread on the top bolt.
I gotta run to work right now. I'll take some pics after i get home tonight.

almasterb

  • Guest
Re: Hoffman Super fork!
« Reply #11 on: December 05, 2007, 08:03 PM »
Those latest superforks are 1" threadless. They take a 1" ahead headset. The steer tube is completely smooth except for the very top 1/2", which is threaded. There is a locknut that holds the stem down, rather than a thread in compression bolt. My stem was not easy to slide on. The threads weren't chromed either.

Offline harris

  • Founding Fathers
  • Hoffman's Love Child
  • *
  • Posts: 23607
  • Rated:
Re: Hoffman Super fork!
« Reply #12 on: December 05, 2007, 08:05 PM »
 :daumenhoch:
mines are all just plain at the top,and that pic looks similar  my mistake .   :daumenhoch:

almasterb

  • Guest
Re: Hoffman Super fork!
« Reply #13 on: December 05, 2007, 08:07 PM »
This has nothing to do with the topic but i've just noticed i'm now a site supporter. Yeah!

Offline harris

  • Founding Fathers
  • Hoffman's Love Child
  • *
  • Posts: 23607
  • Rated:
Re: Hoffman Super fork!
« Reply #14 on: December 05, 2007, 08:07 PM »
 :daumenhoch:

Offline TwoBobRob

  • Site Supporter
  • 900 Air
  • *
  • Posts: 3713
  • Rated:
Re: Hoffman Super fork!
« Reply #15 on: December 05, 2007, 08:16 PM »
Yeah, if it's a 1" ahead we're talking about, then it's not unknown to have to spread the stem slightly to get it over the topnut thread area....

You can  (be careful) open the stem a bit be taking the bolts out, refitting them in the other side (threaded side) and inserting something in the slot for the bolts to push against.  As you tighten the bolts, they will push against whatever you've put in there  (a coin maybe) and open the stem a little.

Once again, be careful. You don't wanna strip the stem bolts out. Be sure to use plenty of lube on the bolts   :)


revcore

  • Guest
Re: Hoffman Super fork!
« Reply #16 on: December 07, 2007, 02:42 AM »
I've got the exact same Superforks except mine have the blue decals on them......Mighty heavy but mighty strong!!!

Offline TwoBobRob

  • Site Supporter
  • 900 Air
  • *
  • Posts: 3713
  • Rated:
Re: Hoffman Super fork!
« Reply #17 on: December 07, 2007, 10:45 AM »
Funny you should say that.  Mine bent on the first bail...........  :'(
