Author Topic: Redline Flight Crank Install Instructions PDF? (Read 5126 times)

Brandy Truffle · « **on:** November 22, 2007, 02:19 PM »

'Spoke' to Ratty about this sticky in T&R http://www.radbmx.co.uk/forum/index.php'topic=26518.0 where he offered the full instructions on PDF if you PM'd him. Anyways,he's temporarily mislaid it,but recommmended asking here as he had sent out to a few members here...

Can anyone help please?

Frosty · « **Reply #1 on:** November 22, 2007, 02:23 PM »

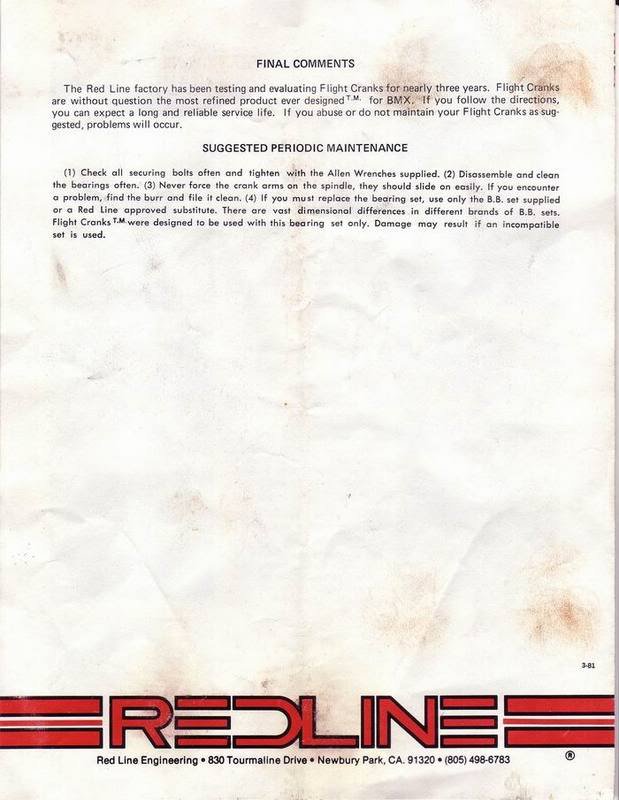

Here you go

RATTY · « **Reply #2 on:** November 22, 2007, 02:28 PM »

Nice one Frosty,

Brandy Truffle · « **Reply #3 on:** November 22, 2007, 02:48 PM »

Thanks Frosty, that'll help if i use the Mongoose loose bearing BB.

Now it may be self explanitary to some but i have a Hadley Sealed BB set here but havent a clue how it goes together.. $:-\$

RATTY · « **Reply #4 on:** November 22, 2007, 04:57 PM »

First off locate the cup in the frame, then slide the axle in, then the hollow spacer (ali tube), then the next cup, then the bearings. Once these are in you need to use the spacers between the arms to align the chainring with the rear sprocket, then do the same with the other arm. It takes some trial and error but it comes together eventually.

Brandy Truffle · « **Reply #5 on:** November 22, 2007, 05:41 PM »

Quote from: RATTY on November 22, 2007, 04:57 PM

....then the hollow spacer (ali tube)..

Oh no, i'm missing a key part?

lazychubs · « **Reply #6 on:** November 22, 2007, 07:44 PM »

would the spacer fit that axle

RATTY · « **Reply #7 on:** November 22, 2007, 07:54 PM »

that axle looks like a loose ball one, can you get a better pic up?

Gary72 · « **Reply #8 on:** November 22, 2007, 11:35 PM »

put some sealed bearing cranks together the other week with no spacer, just tightened up the spindle bolts till no play and then tightened the pinch bolts, no problems so far.
Although it is the wife who rides it, and she has driven a car for 5 miles with a flat without noticing
