Author Topic: DiaCompe 901 fitting (Read 586 times)

LucyLastic · « **on:** June 19, 2007, 09:52 AM »

Can someone supply a close up pic of a fitted 901 (back brake), please? I don't know how to set the bit with 'PULL' written on it. I had an 880 on before.

Big ta

RATTY · « **Reply #1 on:** June 19, 2007, 10:09 AM »

The silver tab with "pull" on it should be pointing down Lou

LucyLastic · « **Reply #2 on:** June 19, 2007, 10:41 AM »

How does the cable go through it, Tony? Sorry if I'm dim here

othomas2 · « **Reply #3 on:** June 19, 2007, 10:56 AM »

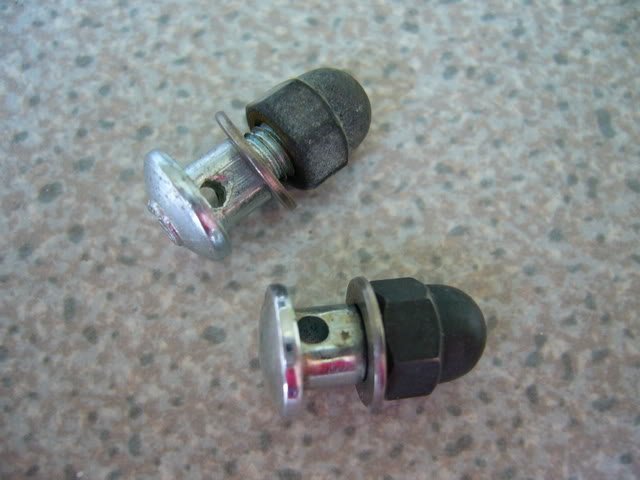

Behind the tab you should see a nut... and the bolt that that's attached to should have a hole in it to thread the cable through... tighten the nut to fix in position. Same principle as your convetional brake... hope this of some help.
