Author Topic: Leary Turbo Crank Spindle?  (Read 998 times)

0 Members and 1 Guest are viewing this topic.

FuNMoNsTeR

  • Guest
Leary Turbo Crank Spindle?
« on: March 07, 2007, 01:31 PM »

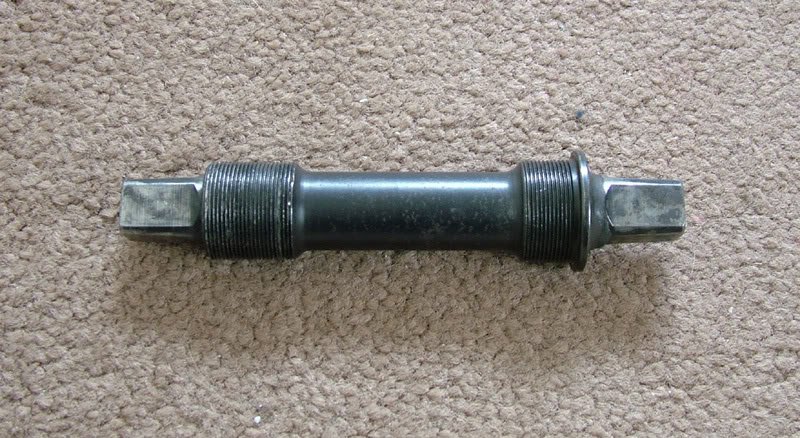

I had this spindle arrive this morning. It was advertised as a Turbo Lite Spindle but the seller says they removed it from a double tubed set of DB cranks, which leads me to believe it is for a Leary Turbo or Early Redline crank. Is this for open bearings? as i can see no mounts for sealed units...... Thanks Guys  :)


Jazzchimp

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #1 on: March 07, 2007, 02:02 PM »
guess the spindle!

loose ball defo as for the turbo bit... not sure

FuNMoNsTeR

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #2 on: March 07, 2007, 02:13 PM »
I think its the large size. It measures 12mm or 1/2 and inch square on the narrowest end of the taper.

GREMLIN

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #3 on: March 07, 2007, 05:14 PM »
Andy ask bmx-796 about the spindle he has on his turbo. From the looks of his pics he's running a loose ball bottom bracket with his turbo crank set  :daumenhoch:

dj_benice

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #4 on: March 07, 2007, 05:16 PM »
from memory the early 400 flights (sugino) and DB three pieces all had the same square tapered spindle ;)


All the sugino spindles are pictured here http://www.radbmx.co.uk/forum/index.php'topic=26518.0;topicseen
« Last Edit: March 07, 2007, 05:22 PM by dj_benice »

digitaltransfer

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #5 on: March 07, 2007, 06:49 PM »
I always thought DB and Redlines were Sealed BB though !!! cant remember seeing anything other than !!

I had a set of profiles, redlines 400 and 401 and they were always sealed BB ?

I remember looking at N restalls DB and his Bros they were always sealed as well !!

But also yes it does look like a loose ball spindle though !

Offline lazychubs

  • Founding Fathers
  • BMX Nerd
  • *
  • Posts: 4309
  • Rated:
Re: Leary Turbo Crank Spindle?
« Reply #6 on: March 07, 2007, 07:43 PM »
try a normal maxy crank arm on it
if it fits then its a normal lite one
if no fit its turbo one lol
as i got a sealed new school one on my turbolite cranks

Offline Waxintaxin

  • Team Owner
  • Cherry Picker
  • *
  • Posts: 1090
  • Rated:
Re: Leary Turbo Crank Spindle?
« Reply #7 on: March 07, 2007, 07:44 PM »
looks like a  400 spindle , but i have never seen a DB one lol

certainly loose ball , and most early redlines 400s and 401s were loose balll

sealed redlines were the hadley or the techmatic BBs which were top bannana i belive

bof

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #8 on: March 07, 2007, 09:22 PM »
definitely not a harry leary spindle but is definitely a  loose ball spindle I would say.

bmx-796

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #9 on: March 07, 2007, 10:02 PM »
sealed b/b on my harry leary

Offline pkradman

  • Posts: -1000
  • Rated:
Re: Leary Turbo Crank Spindle?
« Reply #10 on: March 07, 2007, 10:33 PM »
looks like a 400 spindle to me .. which in turn is a turbo crank spindle

bmx-796

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #11 on: March 07, 2007, 10:40 PM »
do you want to sell it

Frosty

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #12 on: March 08, 2007, 11:18 AM »
The three spindles for the 400 series sealed (Sugino made) cranks are now on Ratty's thread.

I have not heard of 400's in anything other than a sealed version. Could be the DB TL one, I'll see if I can dig out any pics of those.


FuNMoNsTeR

  • Guest
Re: Leary Turbo Crank Spindle?
« Reply #13 on: March 08, 2007, 01:34 PM »
Thanks Guys :)   :4_17_5:
