Author Topic: So this is how I shiney sided my wheels  (Read 3298 times)

0 Members and 1 Guest are viewing this topic.

Offline benno

  • Team Moderator
  • 900 Air
  • *
  • Posts: 3888
  • Rated:
So this is how I shiney sided my wheels
« on: February 28, 2016, 10:14 AM »
I've got these Araya 7x for a custom build I've got on the go at the moment , they have been painted candy blue but i really like the shiny side look , so i set to work .
Now I'm not saying this is the best way or even the right way , this is just what i did  :daumenhoch:

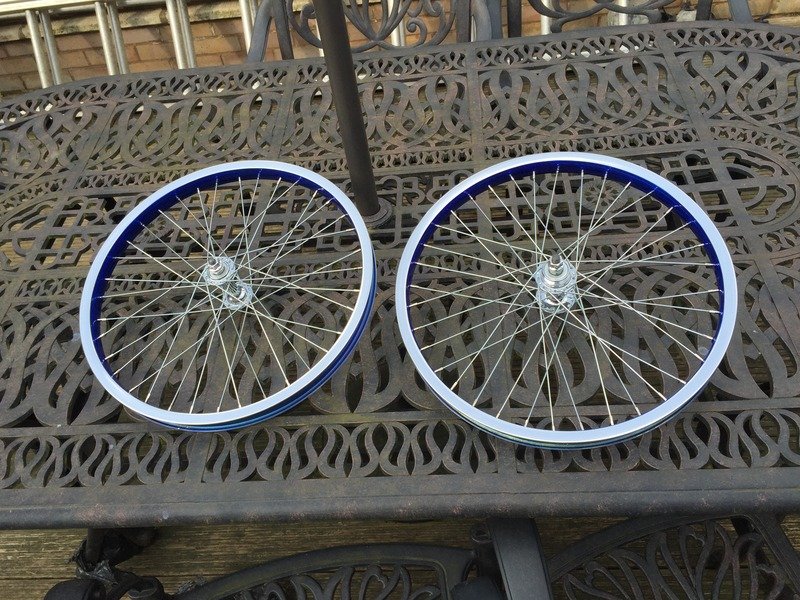

The first pic shows how they were before.
I started by carefully sanding round the rim using my little orbital sander using a 180 grade disc , just going steady and keeping it as flat as possible on the rim.

When all the paint was removed i then hand sanded with wet and dry starting with 240 down to 600 grade paper this left quite a nice brushed alloy sort of satin finish

I haven't got a polisher so i improvised and used my orbital sander with a micro fibre cloth cut into circles stuck to it .
I went round em a couple of times with autosol and then a couple of times with peek and buffed em up by hand .

I'm proper chuffed with how they've come out so i thought id share with you guys incase anyone else fancies a bash

the pics tell more of the story  fistblump



initial sanding









wet sanding





this is how they looked after all the sanding



A makeshift polisher

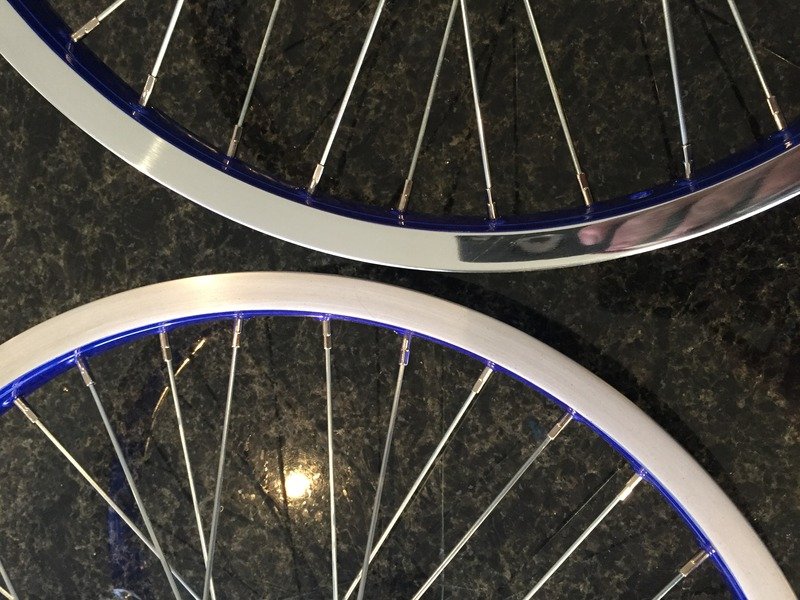

1 polished 1 not



done










It comes out of the ground!

Offline factory pilot

  • Team Owner
  • BMX Nerd
  • *
  • Posts: 4804
  • AKA Swiss Tony AKA Tony DeWonderful
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #1 on: February 28, 2016, 10:18 AM »
Great thread.... Or in my case ask your friendly neighbourhood Uncle Joffy nicely to do them for you! ( thanks Joff!  :daumenhoch: :4_17_5:)
"Knowledge is the acceptance of ones own ignorance." Socrates 399BC

Offline Taipan

  • Site Supporter
  • 900 Air
  • *
  • Posts: 3640
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #2 on: February 28, 2016, 10:19 AM »
 :daumenhoch:

monkian

  • Guest
So this is how I shiney sided my wheels
« Reply #3 on: February 28, 2016, 10:27 AM »
Good job there benno. Thanks for sharing  :daumenhoch:

Offline Retrodan72

  • Site Supporter
  • BMX Overlord
  • *
  • Posts: 16347
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #4 on: February 28, 2016, 10:35 AM »
Great thread Mike, and a top job, they look mint.  :4_17_5:


GO FORWARD TO THE PAST, WITH NRP'S

Offline dancetothedrummersbeat

  • Team Moderator
  • Tail Whip
  • *
  • Posts: 5211
  • Andy
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #5 on: February 28, 2016, 10:51 AM »
Top job Mike, they look great  :4_17_5: I have a seat and 72 spoke nipples that need polishing. Fancy a job?  :LolLolLolLol:

griff

  • Guest
Re: So this is how I shiney sided my wheels
« Reply #6 on: February 28, 2016, 10:57 AM »
Average

Would look ok with white walls on though

Offline benno

  • Team Moderator
  • 900 Air
  • *
  • Posts: 3888
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #7 on: February 28, 2016, 11:04 AM »
Average

Would look ok with white walls on though

 :LolLolLolLol:
It comes out of the ground!

Offline pickle

  • Site Supporter
  • My life is Radbmx
  • *
  • Posts: I am a geek!!
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #8 on: February 28, 2016, 11:39 AM »
Or some cheap Duro coloured tyres

Offline MartyC

  • Berm Worm
  • ***********
  • Posts: 8755
  • Radder than a Rad thing on a Rad day; maybe?
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #9 on: February 28, 2016, 11:40 AM »
Nice job  :daumenhoch:


Better to crash and burn than fade away

Offline NORTY40

  • Site Supporter
  • Berm Worm
  • *
  • Posts: 10204
  • NIL SATIS NISI OPTIMUM
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #10 on: February 28, 2016, 03:08 PM »
Great thread.... Or in my case ask your friendly neighbourhood Uncle Joffy nicely to do them for you! ( thanks Joff!  :daumenhoch: :4_17_5:)


 ::) :D  Shine sided to bling and back to matt finish ....... bloody fussy mates !!  :LolLolLolLol:

They look great though Ant  ;) 8)



Top job done on those Mike , they came out great  :4_17_5:
WANTED : Old school BMX patches/sew on badges ......  please  :)

Offline factory pilot

  • Team Owner
  • BMX Nerd
  • *
  • Posts: 4804
  • AKA Swiss Tony AKA Tony DeWonderful
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #11 on: February 28, 2016, 05:37 PM »
Great thread.... Or in my case ask your friendly neighbourhood Uncle Joffy nicely to do them for you! ( thanks Joff!  :daumenhoch: :4_17_5:)


 ::) :D  Shine sided to bling and back to matt finish ....... bloody fussy mates !!  :LolLolLolLol:

They look great though Ant  ;) 8)



Top job done on those Mike , they came out great  :4_17_5:

 :bow: :bow: :bow: :smitten: :smitten: :smitten:
"Knowledge is the acceptance of ones own ignorance." Socrates 399BC

Offline Jazzchimp

  • Curb Endo
  • **
  • Posts: 127
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #12 on: February 28, 2016, 10:15 PM »
Brave man but looks incredible! Can we sticky this?

Offline CustardLips

  • Site Supporter
  • Berm Worm
  • *
  • Posts: 7314
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #13 on: February 29, 2016, 09:51 AM »
Nice work Mike.  :daumenhoch:
"Every year is getting shorter, never seem to find the time"

"WWG1WGA"

Offline wilsey72

  • Team Moderator
  • 900 Air
  • *
  • Posts: 3286
  • Thats corn that is.
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #14 on: February 29, 2016, 04:45 PM »
The first contact of the sander with the rim is the hardest eh Mike?
Pictures don't fully show how sexy these look in real life.
Top job bro.  fistblump
GLOUCESTER RIDE 28th July 2018

Offline Jazzchimp

  • Curb Endo
  • **
  • Posts: 127
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #15 on: February 29, 2016, 04:48 PM »
I'm hard to please but looking at the shits how did you get the grain of the sanding to follow the rim so accurately - looks machined!! You could make a career out of this

Offline BMX1973

  • Site Supporter
  • Berm Worm
  • *
  • Posts: 8415
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #16 on: February 29, 2016, 08:13 PM »
Great thread.  :) Great results.  :4_17_5:

 :daumenhoch:

Offline benno

  • Team Moderator
  • 900 Air
  • *
  • Posts: 3888
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #17 on: February 29, 2016, 08:21 PM »
I'm hard to please but looking at the shits how did you get the grain of the sanding to follow the rim so accurately - looks machined!! You could make a career out of this

Just followed the curve of the rim by hand mate , I did wear through the skin on me finger though 😂😂
It comes out of the ground!

Offline torkerdude180

  • Site Supporter
  • 540 Air
  • *
  • Posts: 2906
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #18 on: March 14, 2016, 02:37 PM »
Top job mr. B. Impressed i am..😎👍
THE TIGER

Offline wilsey72

  • Team Moderator
  • 900 Air
  • *
  • Posts: 3286
  • Thats corn that is.
  • Rated:
Re: So this is how I shiney sided my wheels
« Reply #19 on: May 10, 2017, 04:59 PM »
BUMP for this masterclass.

 explosion
GLOUCESTER RIDE 28th July 2018
