Author Topic: Zeronine Ultra build thread (Read 42250 times)

oldschoolace · « **Reply #75 on:** December 06, 2016, 10:54 PM »

Wonders of modern tech Griff...... Hopefully

factory pilot · « **Reply #76 on:** December 07, 2016, 08:53 AM »

It's all looking very sexy Clint

markstrong10 · « **Reply #77 on:** December 07, 2016, 05:49 PM »

Love this thread....what's next?

fischflo · « **Reply #78 on:** December 07, 2016, 06:09 PM »

...had fogotten we've gone 3D already ..

Funkyworm · « **Reply #79 on:** December 07, 2016, 07:03 PM »

Witchcraft i tell ya !

oldschoolace · « **Reply #80 on:** February 24, 2017, 07:56 PM »

Got the frame back from being stripped at Leigh metal polisher today. came up better than i had hoped

Plenty of fettling needed, first of which is to sort this out

Best get practicing with the brazing torch to get these sorted too.

And plenty of filing in the pipeline too

Its a super slow burner but its moving

oldschoolace · « **Reply #81 on:** February 25, 2017, 02:32 PM »

Tried a stout ratchet strap and a large block of wood along the length of the top tube to try and tease it straight but no luck.

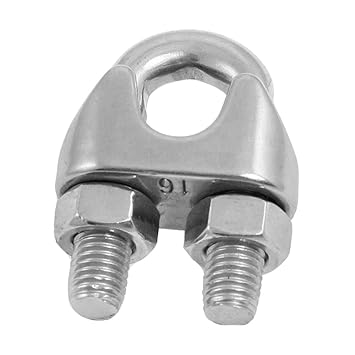

Not to be outdone i have ordered a 16mm cable clamp

plan is to remove the U bolt and use the block as a puller with a couple of long bolts

dancetothedrummersbeat · « **Reply #82 on:** February 25, 2017, 02:41 PM »

Good luck in getting it fixed Clint. Are you in work today? I'll round your way in about an hour if you're around?

oldschoolace · « **Reply #83 on:** February 25, 2017, 02:49 PM »

In every saturday mate

CustardLips · « **Reply #84 on:** February 25, 2017, 03:00 PM »

Looking forward to seeing this unfold Clint... keep up the good work.

Andyboy77 · « **Reply #85 on:** February 26, 2017, 06:25 PM »

How could I miss this?

This is just amazing! The pedals and the rotor cover are first class!

Can't wait to see those grips.

chubby · « **Reply #86 on:** February 26, 2017, 06:29 PM »

Did come out well, was expecting it to be awful 😂😂

Sent from my HTC One M9 using Tapatalk

oldschoolace · « **Reply #87 on:** March 06, 2017, 05:44 PM »

Another step closer today.
Cable clamp finally arrived and the temptation to have a little play was too great.
Once i had cut the pointy towers off and ground the inside of the clamp smooth i offered it up to the bent tube only to discover the clamp was a little too thick to slide down far enough to meet the dent.
10 mins on the grinder and it was a perfect fit

I cut a few lengths of 10mm threaded rod and drilled a scrap of aluminium to form a clamp end.
The whole thing was mounted over a 4 inch plank of ash timber

I started to tighten the nuts and slowly but surely the top tube began to move back where it belonged.

Once tight to the timber i released the clamps and although much better it wasnt bob on so i cut i fine dip in the timber to pull the tube beyond straight, knowing it would relax straight one i released the pressure

Once straight it was time to break out the rounding tool i made. A slow process of tightening the nuts coupled with rotating the tool with plenty of oil soon had the tube back to being as round as it could be, leaving just the dent to be filled.

Im no metalworker but im pretty pleased with the results

deeman · « **Reply #88 on:** March 06, 2017, 06:12 PM »

Fantastic work Clint.....

Jaymz · « **Reply #89 on:** March 06, 2017, 06:22 PM »

Awesome stuff

Andyboy77 · « **Reply #90 on:** March 06, 2017, 08:06 PM »

Great ideas, awesome self-made tools and and a fantastic outcome!

CustardLips · « **Reply #91 on:** March 06, 2017, 08:44 PM »

Top bodging Clint. Your like the Fred Dibnah of Bmx.

griff · « **Reply #92 on:** March 06, 2017, 11:16 PM »

Loving this

chubby · « **Reply #93 on:** March 06, 2017, 11:19 PM »

Impressed with that chum 👍👍

Sent from my HTC One M9 using Tapatalk

monkian · « **Reply #94 on:** March 06, 2017, 11:29 PM »

I think I'm a little bit in love with Clint.
Damn, did I say that out loud

Pure awesomeness mate

McQUEEN · « **Reply #95 on:** March 07, 2017, 07:56 AM »

one for the Discovery Channel! A great thread!!

In2bmx · « **Reply #96 on:** March 07, 2017, 08:34 AM »

Great thread ! Top Skillz

insectbones · « **Reply #97 on:** March 12, 2017, 09:01 AM »

Ace job on pulling the toptube straight

Taipan · « **Reply #98 on:** March 28, 2017, 07:01 AM »

Man's a bloody genius! Who needs Ed China? When rad has its own resident Jack of all trades

Robbo · « **Reply #99 on:** March 28, 2017, 08:35 PM »

Awesome work!
