Author Topic: Peregrine Crazy 95 Wheel Build... (Read 4950 times)

GavinDavis · « **on:** April 05, 2014, 05:07 PM »

A couple of years ago, I bought a set of Peregrine Crazy 95's of Dan Harris and I absolutely love them!!

I got looking into how much work would be involved to make another set, mainly just for the hell of it I guess lol. Well...that time has come!

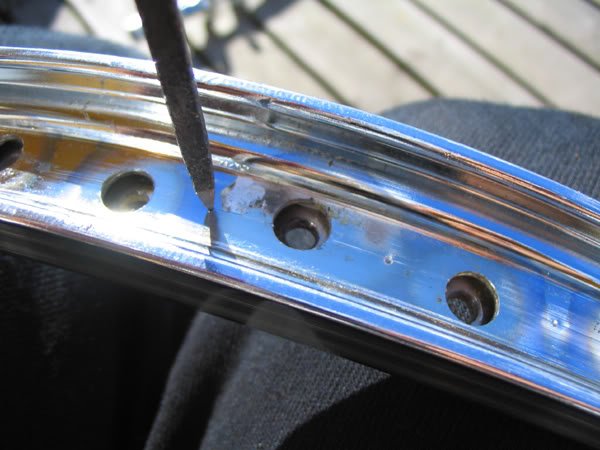

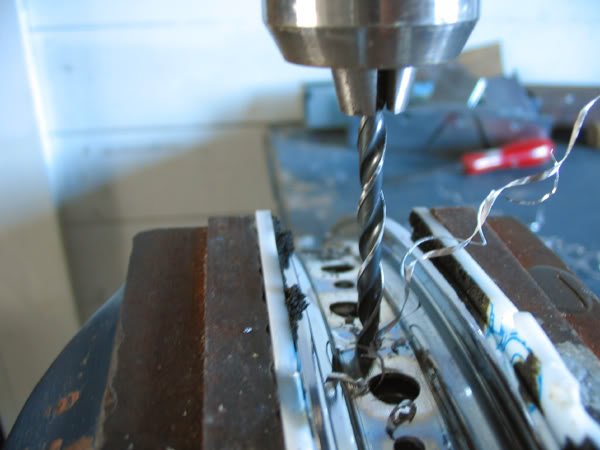

I bought a well used pair of Perry 48's off Rog "Adenough" ages ago and set those aside to be my donor wheels for the project. I cut all of the spokes out to save faffing around and got stuck into marking out the rims/hubs for the additional holes. Unfortunately I don't have any photos of the marking out but its pretty straight forward

. When youre drilling the hubs, dont forget to leave one of the "would be" holes undrilled.....this is to account for the valve hole

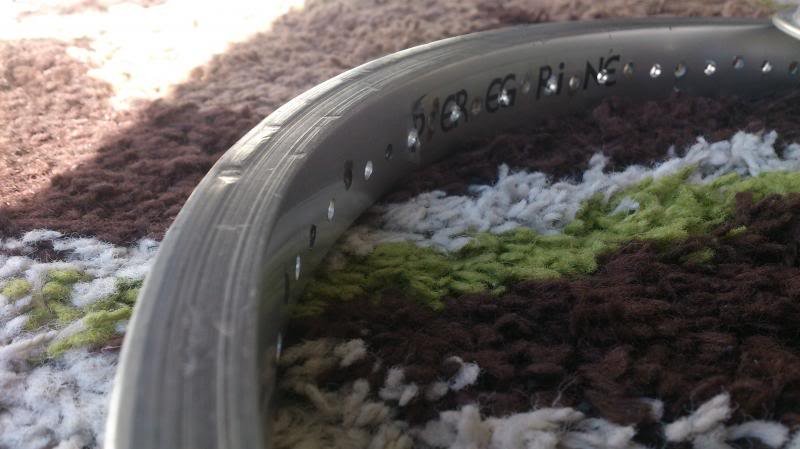

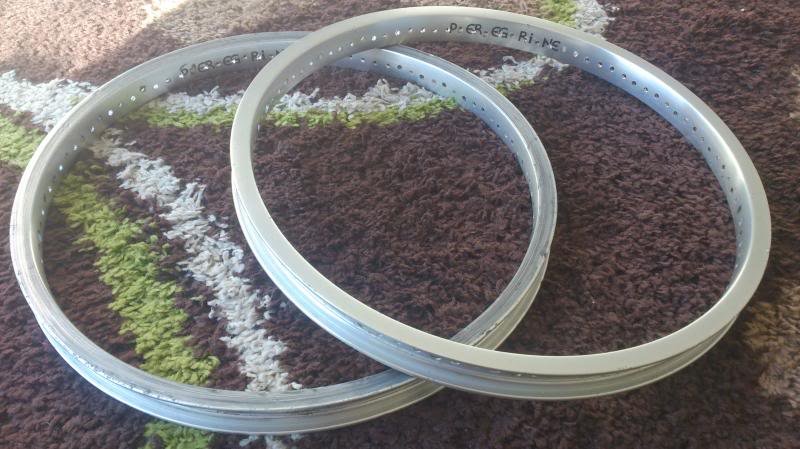

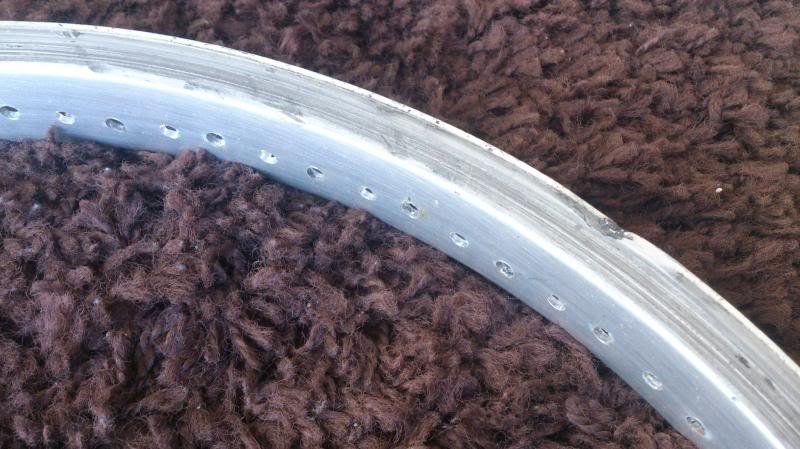

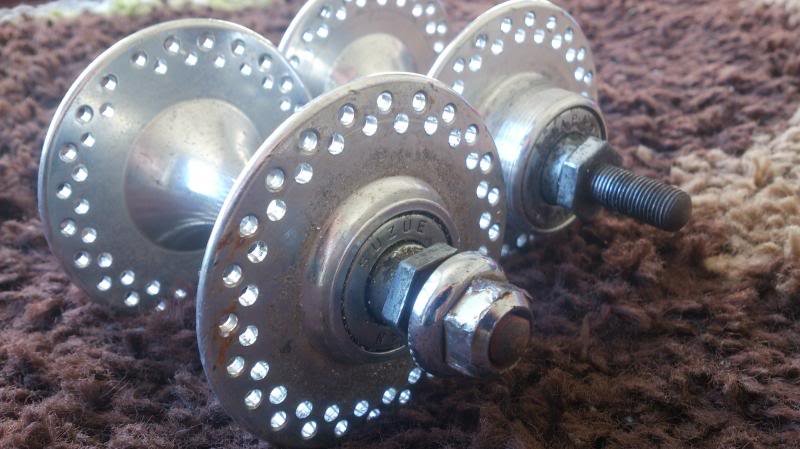

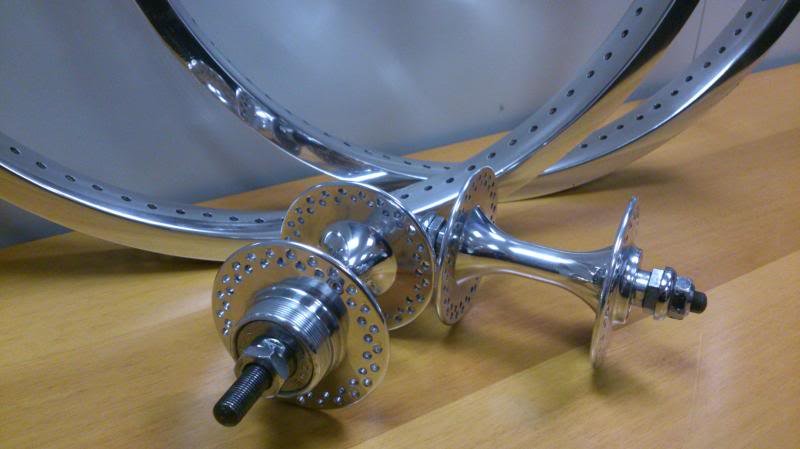

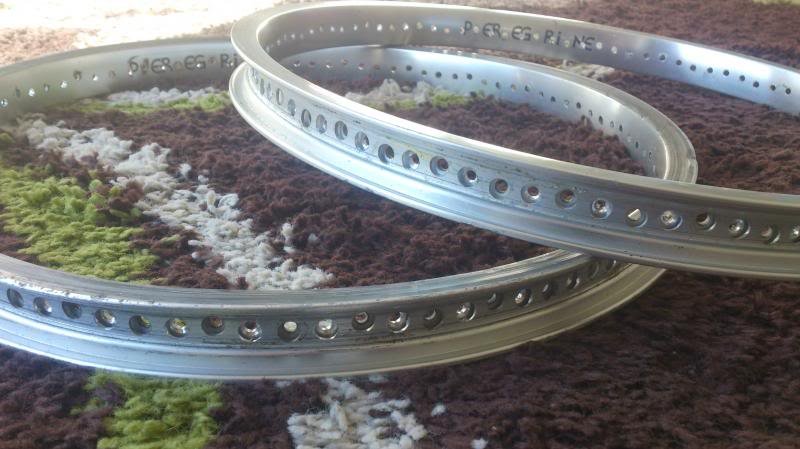

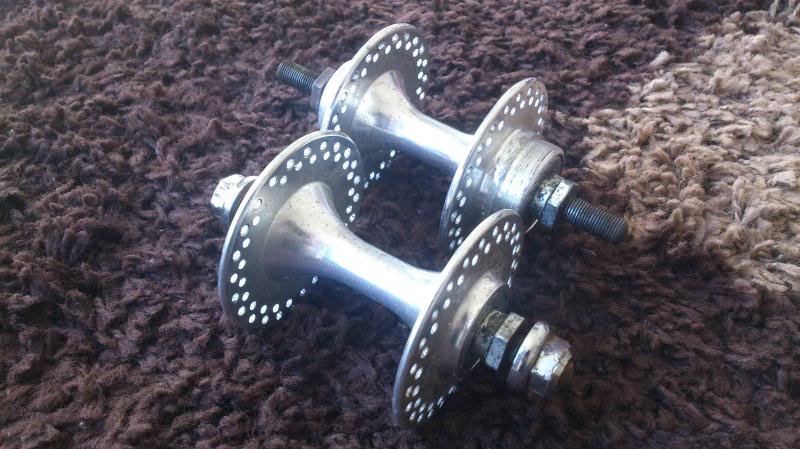

So here are the rims and hubs after I drilled them out:

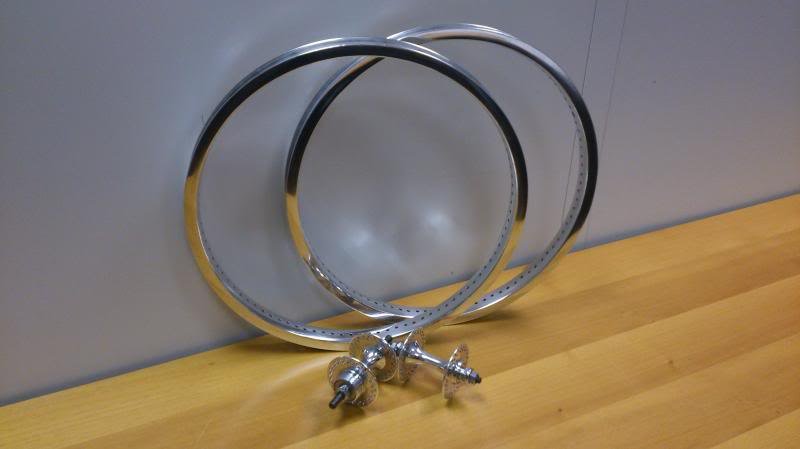

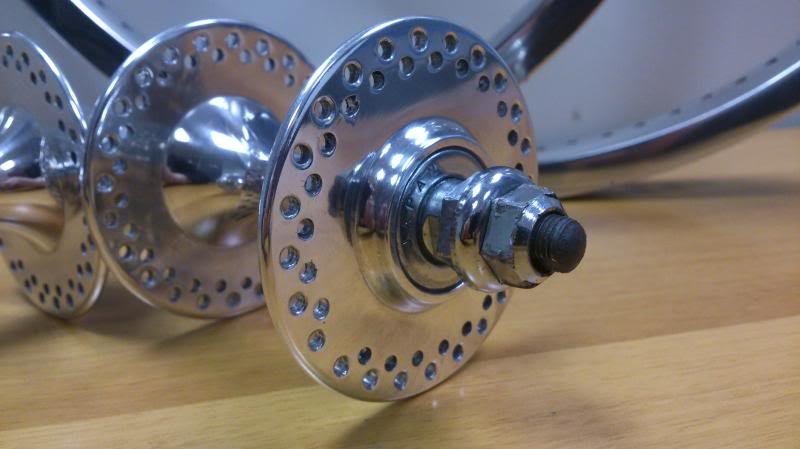

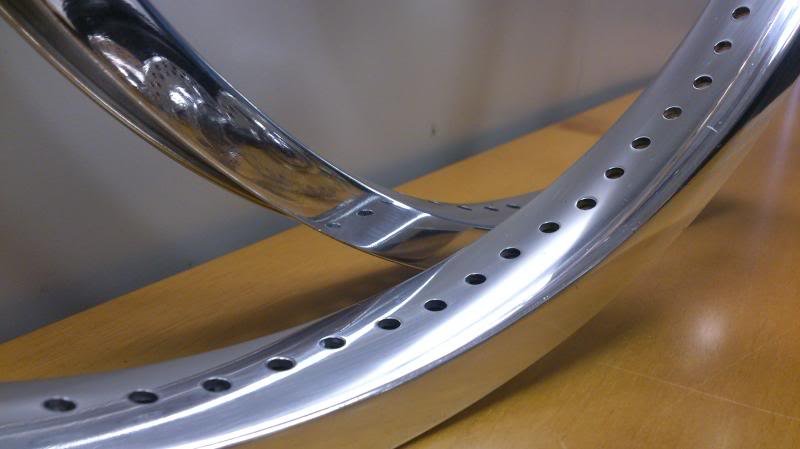

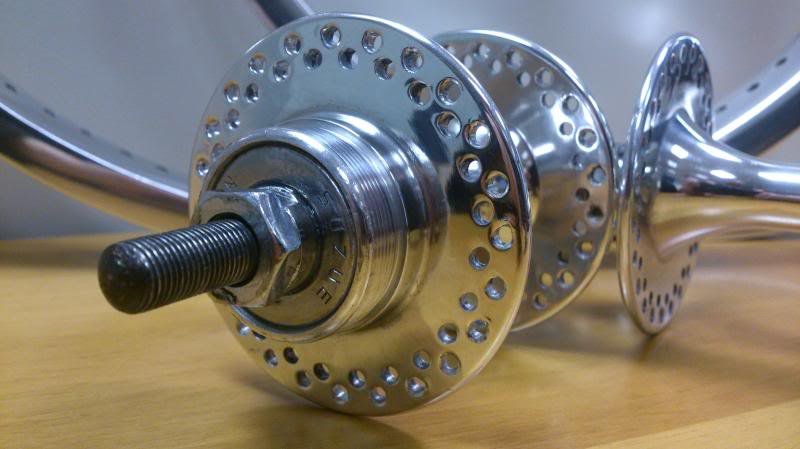

Next up came the polishing.....I got in contact with Joff "Norty40" and he welcomed these badboys with open arms!! I wouldnt have done knowing how much work went into them! Lol. I cant thank Joff enough for all of his help, the bloke should be King!!! This is how they looked when King Joff sent them back to me

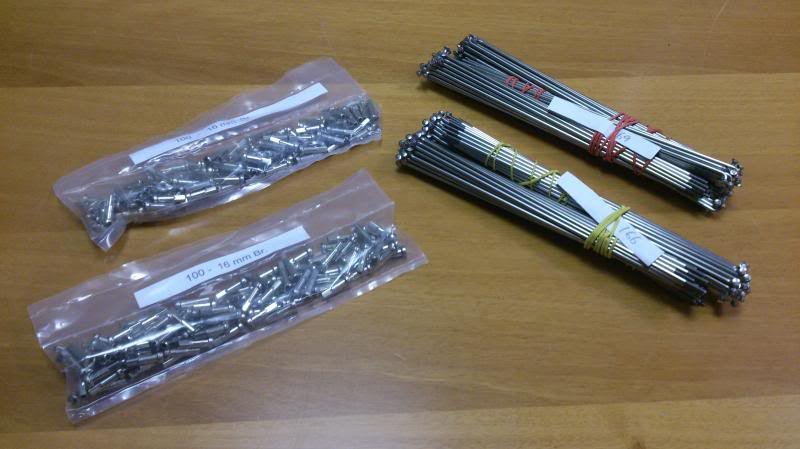

I also grabbed some "custom cut spokes" and long nips from Joff's mate while they were being polished...

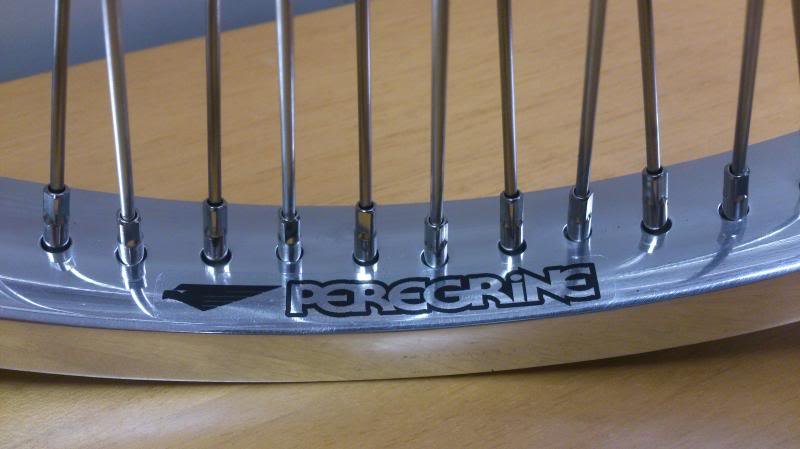

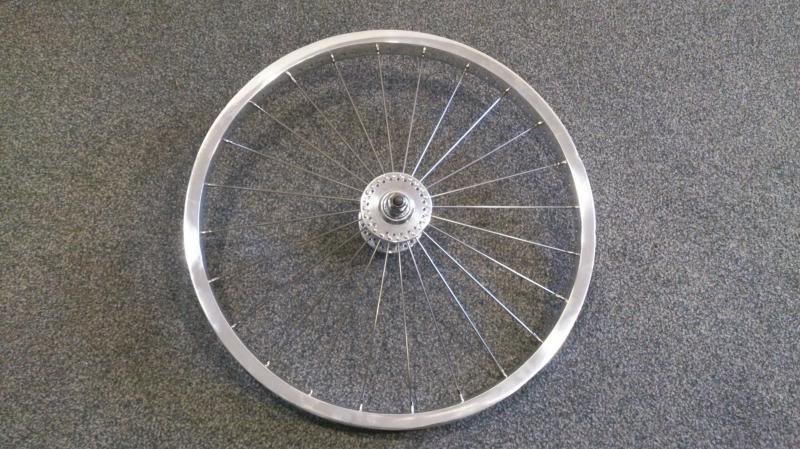

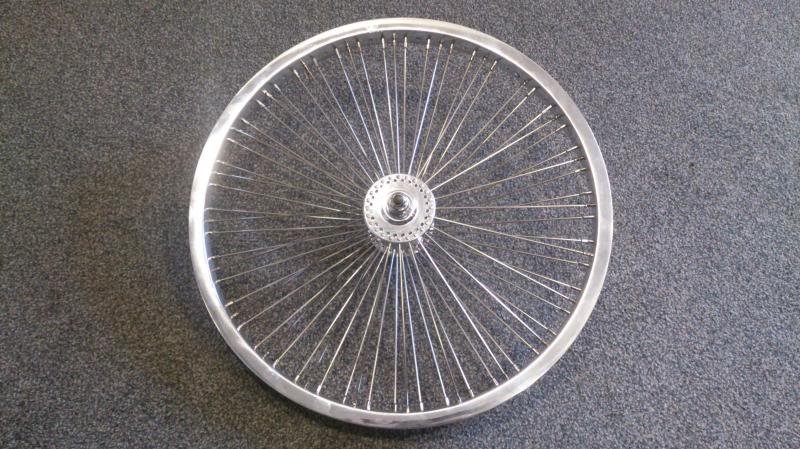

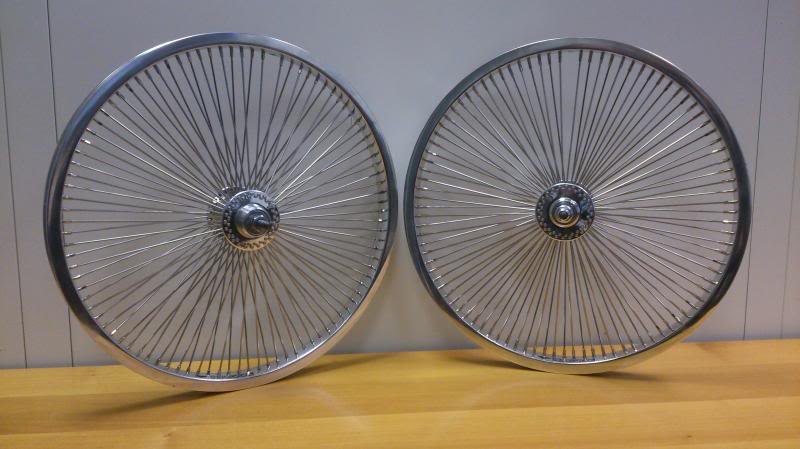

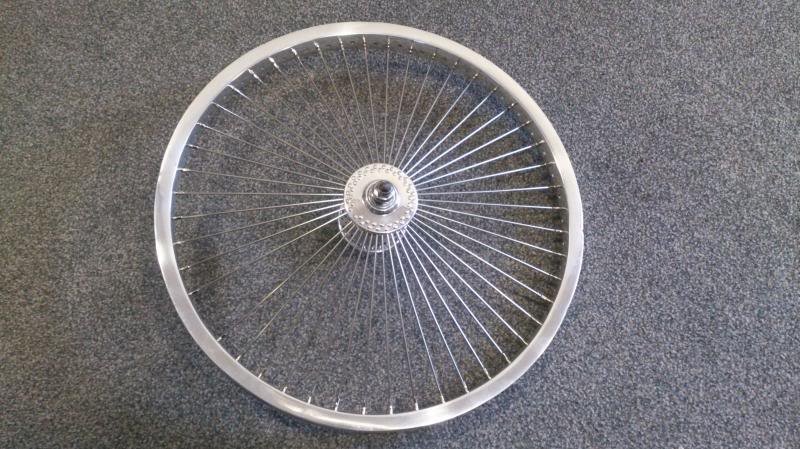

Once I had it all in my mits I set about lacing them up..... Im not gonna lie.....it took me the best part of 5 hours to lace them both and get the tension nice! But they were definitely worth it!! Del helped me out too with some rim decals.......have a look and see what you think......Im seriously chuffed with them!!!!

Jaymz · « **Reply #1 on:** April 05, 2014, 05:10 PM »

They really are crazy

Mat · « **Reply #2 on:** April 05, 2014, 05:18 PM »

Magic them, well bling innit

oldschoolace · « **Reply #3 on:** April 05, 2014, 05:30 PM »

Cracking job all round on those! can't beat a bit of home brew

adenough · « **Reply #4 on:** April 05, 2014, 05:35 PM »

brakedancer · « **Reply #5 on:** April 05, 2014, 05:49 PM »

they look sh!t hot gav....

love them..

are they destine for the wal....

soooo need some of these badboys...

lowrider style..

GavinDavis · « **Reply #6 on:** April 05, 2014, 05:55 PM »

Quote from: brakedancer on April 05, 2014, 05:49 PM

they look sh!t hot gav....

love them..

are they destine for the wal....

soooo need some of these badboys...

lowrider style..

Cheers dude

Nope not going on the WAL, although they would look sweet....hmmm. The WAL is getting the twisted spoke treatment on a pair of super pro's when I can find the last bloomin rim lol.

Really not sure what im gonna mount these on yet? lol. I might need a new build haha

Dannywhac · « **Reply #7 on:** April 05, 2014, 08:15 PM »

They're ace Gav - mentoid but ace

NORTY40 · « **Reply #8 on:** April 05, 2014, 08:30 PM »

Jeeeez Gav you didn't hang around , I knew you said you couldn't wait to get them built but you must of been up all Friday night

!!! They look mental but cool

Glad your happy with them mate and thanks for the kind words

PS That front rim with all those dents was a swine to sort

..... got there in the end though .

Dannywhac · « **Reply #9 on:** April 05, 2014, 08:33 PM »

You did a proper ace job on them rims Joff

How the hell did you sort out them dings?

NORTY40 · « **Reply #10 on:** April 05, 2014, 08:49 PM »

Quote from: Dannywhac on April 05, 2014, 08:33 PM

You did a proper ace job on them rims Joff How the hell did you sort out them dings?

Cheers mate but tbh i just bought a brand new rim off ebay , re drilled and polished it , ended up losing shit loads of cash but at least it kept Gav happy

Seriously though , quite a bit of work , a lot of sanding to keep all the sides flat and true etc . I did PM Gav when they arrived and said the front one might be beyond me as i don't own a steam roller !! It turned out well though in the end , you can't tell it's the same rim .

GavinDavis · « **Reply #11 on:** April 05, 2014, 08:59 PM »

Quote from: NORTY40 on April 05, 2014, 08:30 PM

Jeeeez Gav you didn't hang around , I knew you said you couldn't wait to get them built but you must of been up all Friday night !!! They look mental but cool

Glad your happy with them mate and thanks for the kind words

PS That front rim with all those dents was a swine to sort ..... got there in the end though .

...... I was too excited to leave them wrapped up haha.

Took me the best part of 5 hours today get them built but I love them!! I want a pair for every bike now lol.

Ill definitely send any polishing jobs your way Joff.....(ill even queue up if I have to lol) the finish is amazing!!

Looking back I should have just sourced another rim to save you the aggro lol.

And those sweets you sent me definitely took me to the next level......next time ill get in your car I promise haha

Blacky · « **Reply #12 on:** April 05, 2014, 09:06 PM »

I still have two sets if these from new, I bought the from Billy's bikes when they came out

midschooljon · « **Reply #13 on:** April 05, 2014, 09:52 PM »

Excellent work.

Discostu · « **Reply #14 on:** April 05, 2014, 11:01 PM »

Looking great Gavin.

Were the originals radial laced? I thought they were crossed, imagine lacing up a set of those!

OllyHall · « **Reply #15 on:** April 06, 2014, 07:03 AM »

Looks good guys! Very nice!

GavinDavis · « **Reply #16 on:** April 06, 2014, 07:22 AM »

Quote from: Discostu on April 05, 2014, 11:01 PM

Looking great Gavin.

Were the originals radial laced? I thought they were crossed, imagine lacing up a set of those!

Cheers Stu

Yep the originals were radial laced mate

. There have been a couple of variants on lacing these, a guy over on the museum a while ago drilled the holes on his hubs perfectly in line with the existing holes....just on a different pcd, and then lace them 4x. It must be an absolute arse to lace lol.

The other set that ive got are radial laced too.....but instead of alternating the spoke length, the spokes were laced in pairs around the rim. Ill dig some pics out

GavinDavis · « **Reply #17 on:** April 06, 2014, 07:22 AM »

Quote from: Blacky on April 05, 2014, 09:06 PM

I still have two sets if these from new, I bought the from Billy's bikes when they came out

Awesome!! You got any pics?

GavinDavis · « **Reply #18 on:** April 06, 2014, 07:45 AM »

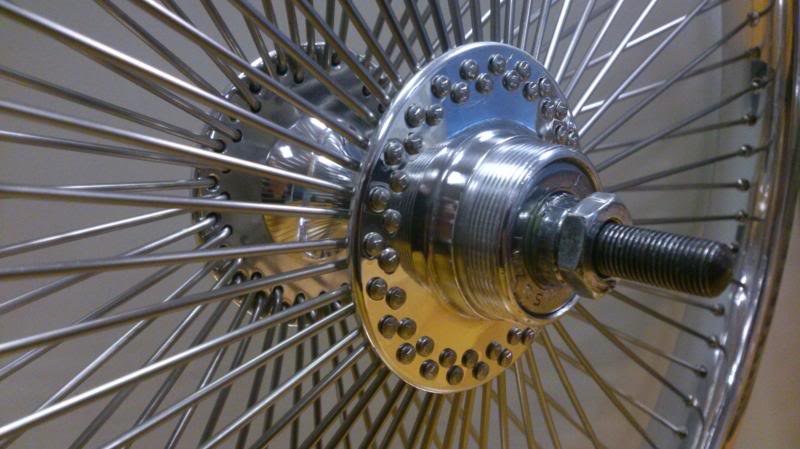

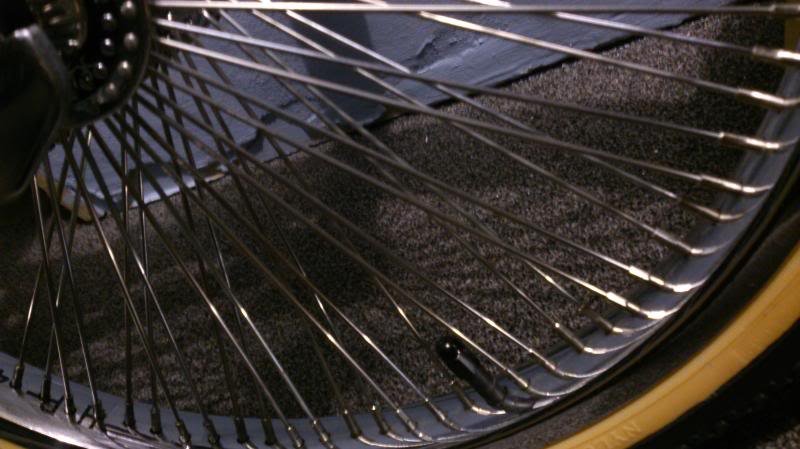

Here are a couple of pics of my other set, the lacing has been done in alternate pairs around the rim

GavinDavis · « **Reply #19 on:** April 06, 2014, 07:51 AM »

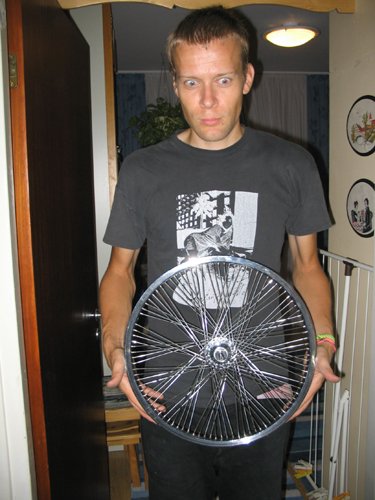

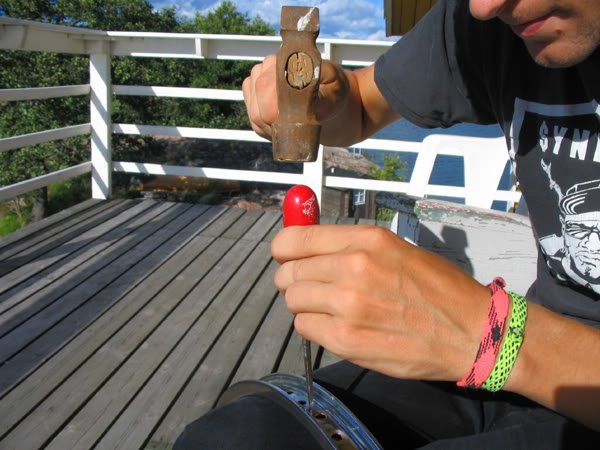

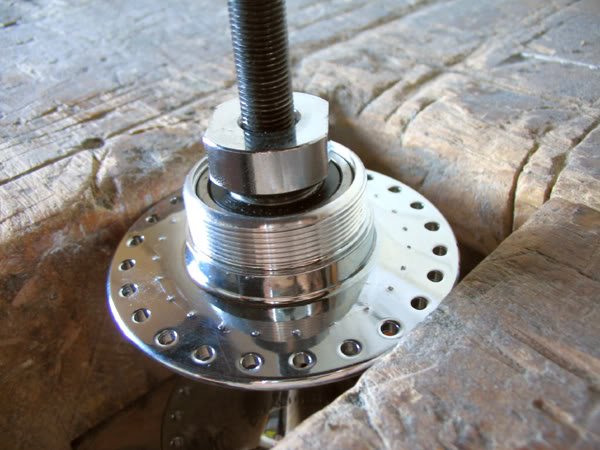

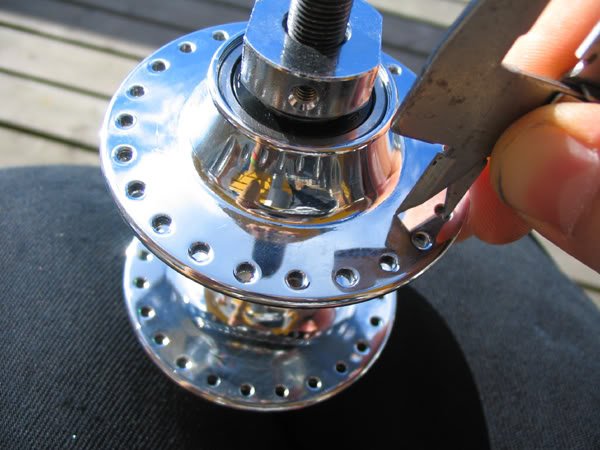

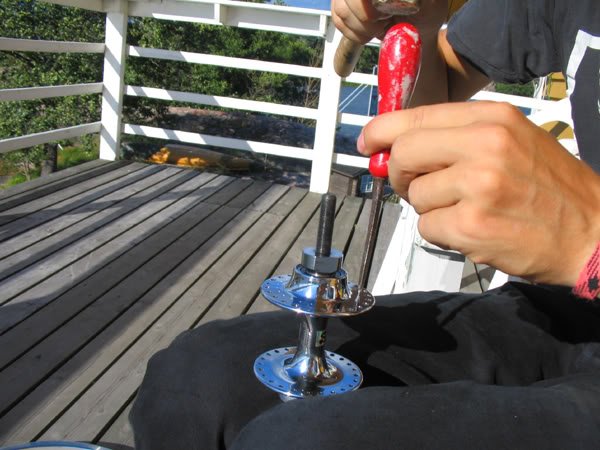

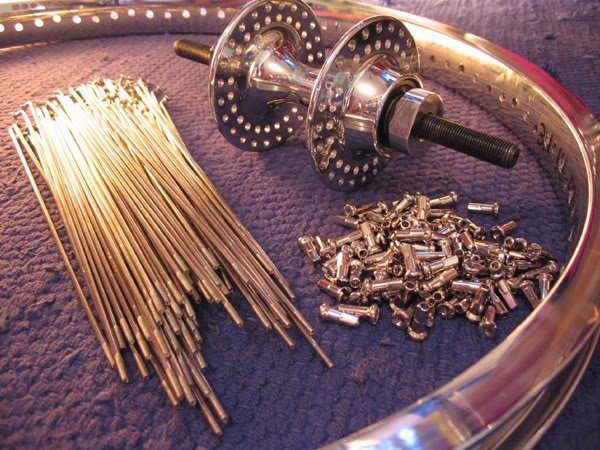

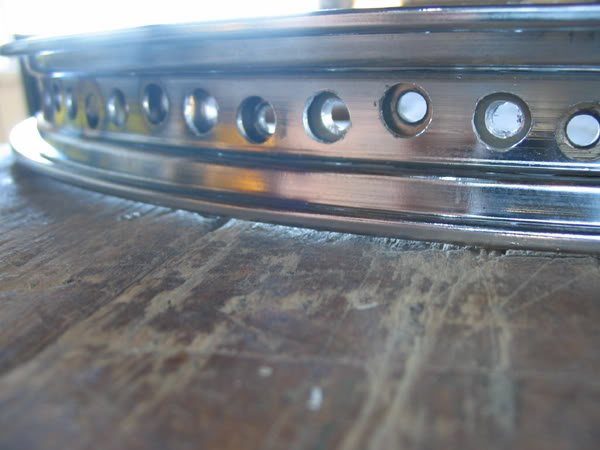

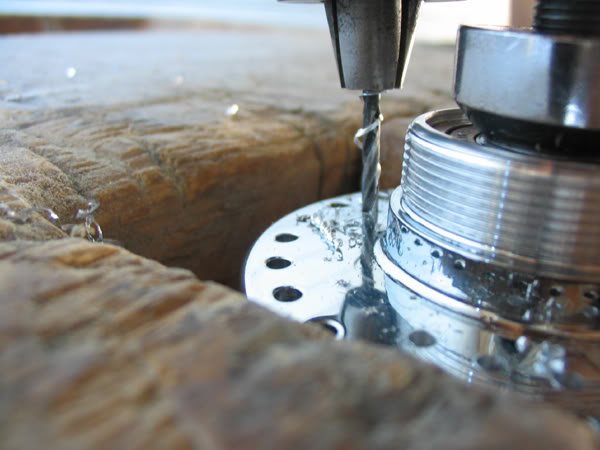

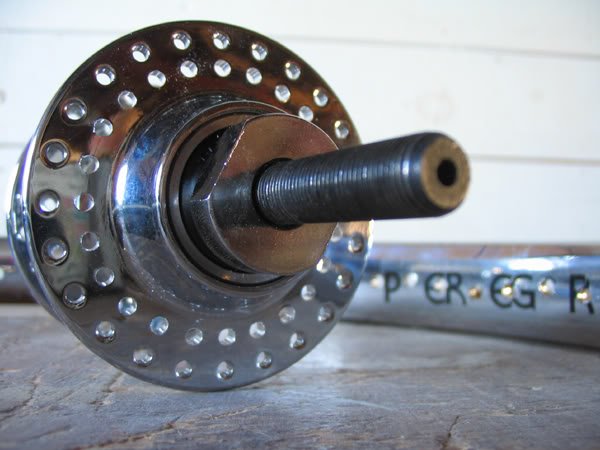

And also.....as a reference, these are the build pics from Museum member "2Fresh" . These were lace 4x

kev-s · « **Reply #20 on:** April 06, 2014, 08:49 AM »

cool

would love a set of the manly cross laced versions

Dodge-13 · « **Reply #21 on:** April 06, 2014, 09:26 PM »

Great work dude
Look well cool

midschooljon · « **Reply #22 on:** April 06, 2014, 09:43 PM »

That set laced 4x looks amazing.

Discostu · « **Reply #23 on:** April 07, 2014, 12:38 AM »

They are the ones, manly four cross, now they look the dogs.

EDBANGER · « **Reply #24 on:** April 07, 2014, 09:32 AM »

I read this thread yestersday and then had a dream about these wheels last night. This morning I couldn't work out whether the dream was just a dream or that I'd actually seen this thread. I've been effected.
