Author Topic: Seat post tube too narrow.  (Read 1918 times)

0 Members and 1 Guest are viewing this topic.

rwleigh

  • Guest
Seat post tube too narrow.
« on: August 03, 2012, 01:01 PM »
Can anyone advise on the best way slightly open out a tight seat post tube.



I want to get this done before it goes off to Dan for it's new fluorescent green powder.  :)

Offline dordymush

  • Berm Worm
  • ***********
  • Posts: 10464
  • Rated:
Re: Seat post tube too narrow.
« Reply #1 on: August 03, 2012, 01:27 PM »
just put a flat end screw driver in it when you put you post in.
dave the bmxing gypo


mileyboy

  • Guest
Re: Seat post tube too narrow.
« Reply #2 on: August 03, 2012, 01:48 PM »
Have you checked the width of the post?

Offline Andy68

  • Site Supporter
  • 540 Air
  • *
  • Posts: 2378
  • Rated:
Re: Seat post tube too narrow.
« Reply #3 on: August 03, 2012, 02:03 PM »
Gonna ask the obvious....... any rust inside seat post tube fella???

rwleigh

  • Guest
Re: Seat post tube too narrow.
« Reply #4 on: August 03, 2012, 02:06 PM »
I can get the post in using a flat bladed screw driver and it is a 22.2mm post.

I just wanted to make it the correct size more permanently so i don't have to use the screw driver on fresh powder.

rwleigh

  • Guest
Re: Seat post tube too narrow.
« Reply #5 on: August 03, 2012, 02:20 PM »
Gonna ask the obvious....... any rust inside seat post tube fella???

No it's very clean and rust free inside, it's just the slot that isn't as parallel as it used to be and therefore tight at the top.

Offline oldtired

  • 540 Air
  • *******
  • Posts: 2533
  • Dirty Old Man
  • Rated:
Re: Seat post tube too narrow.
« Reply #6 on: August 03, 2012, 03:24 PM »
you can use an old post to open the gap up , bung it in so its just below the slot, preferably below the weld on the plate,   then force it backwards , use a clamp on loose to stop it spreading to far ,  better still if you can use some weight to force it back and the leave it a couple of days with the weight on it,  have used an old axle in the dropouts and a ratchet strap onto the seatpost to force the post back , left for a few days to let the steel move , on a raw frame you can use some heat to speed things up
« Last Edit: August 03, 2012, 03:33 PM by oldtired »

Offline Peter J

  • BMX Nerd
  • *********
  • Posts: 4993
  • I have issues
    • http://www.sumoservices.com/
  • Rated:
Re: Seat post tube too narrow.
« Reply #7 on: August 03, 2012, 03:29 PM »
Put the blade of the screwdriver inside a "cloth" dish cloth or one of them microfibre dusters (ask the Mrs  >:D )

and slide it in from the top with a gentle wiggle and ease it in to open it up

Bit like having bum sex with the Mrs don't just go stabbing in there or you'll knacker it  :daumenhoch:
I might actually build a bike this year instead of just hoarding parts :)

rwleigh

  • Guest
Re: Seat post tube too narrow.
« Reply #8 on: August 03, 2012, 06:36 PM »
Thanks for the advice guys, think i'll start with the screwdriver in a cloth option first.

By the way Peter, WAY TOO MUCH INFORMATION THERE! ::)

Offline rick1970

  • Look Back
  • *****
  • Posts: 1742
  • Rated:
Re: Seat post tube too narrow.
« Reply #9 on: August 04, 2012, 07:26 AM »
i reckon your problem is all that paint or powder inside tube get that stripped out and sanded before yer go prising with tools  :daumenhoch:

rwleigh

  • Guest
Re: Seat post tube too narrow.
« Reply #10 on: August 04, 2012, 02:51 PM »
i reckon your problem is all that paint or powder inside tube get that stripped out and sanded before yer go prising with tools  :daumenhoch:

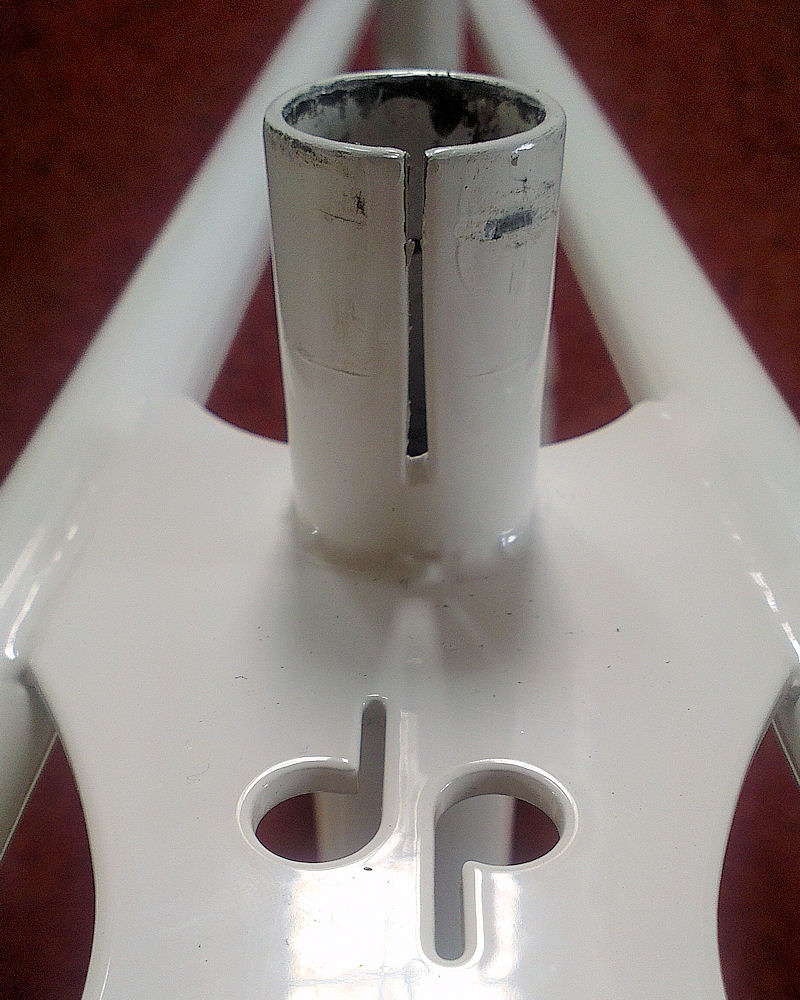

There is a little bit of overspray in there but nothing too serious, the slot definitely narrows towards the top though.

Doesn't show all that well in the photo.
« Last Edit: August 04, 2012, 03:51 PM by rwleigh »

Offline animal

  • Team Moderator
  • BMX Nerd
  • *
  • Posts: 4627
  • MRD Loony & proud
  • Rated:
Re: Seat post tube too narrow.
« Reply #11 on: August 04, 2012, 07:43 PM »
The best way I have found on my Bodgin escapades  ::) is 2 Use a Rawshield in there and tighten it up it then pushes the tube out as it expands  :daumenhoch: Hardware store and a search 4 the closest size is the way 2 go  :P

rwleigh

  • Guest
Re: Seat post tube too narrow.
« Reply #12 on: August 05, 2012, 11:51 AM »
I give in, what's a rawshield?

Photo, link...?
