Author Topic: ACS Z Rim Decal Positions?? (Read 3039 times)

Retrodan72 · « **on:** March 10, 2012, 11:23 AM »

Alright lads is there a correct/scientific way method of fitting these?? $:-\$

Where's best to place the 1st and what's the best way to ensure you get equal spacing between them??

Cheers Dan.

BENDYCAT ELEVENTEEN · « **Reply #1 on:** March 10, 2012, 11:34 AM »

I'm sure there is a easy way but my brain being so powerful some times it over heats and doesn't always take the east route

I got string and went round the outside of the rim - them divide the length into three using my massive brain and a calculator - mark the three points on the string - then with a pencil i mark the spots on the wheels and measured the distance between each length to make sure it was in the middle and spot on - them measure the middle of the decal of stencil and find the middle - then it's a case of using you eye to find the height it should go at

hope you understand how i did it

cheers B

Retrodan72 · « **Reply #2 on:** March 10, 2012, 12:13 PM »

Quote from: BENDYCAT ELEVENTEEN on March 10, 2012, 11:34 AM

I'm sure there is a easy way but my brain being so powerful some times it over heats and doesn't always take the east route

I got string and went round the outside of the rim - them divide the length into three using my massive brain and a calculator - mark the three points on the string - then with a pencil i mark the spots on the wheels and measured the distance between each length to make sure it was in the middle and spot on - them measure the middle of the decal of stencil and find the middle - then it's a case of using you eye to find the height it should go at

hope you understand how i did it

cheers B

Makes sense that B, good work.

BENDYCAT ELEVENTEEN · « **Reply #3 on:** March 10, 2012, 12:19 PM »

well can you explain it to me now !

Retrodan72 · « **Reply #4 on:** March 10, 2012, 12:37 PM »

Quote from: BENDYCAT ELEVENTEEN on March 10, 2012, 12:19 PM

well can you explain it to me now !

No, but i'll have a go with the string.

rollin72 · « **Reply #5 on:** March 10, 2012, 05:48 PM »

10 spokes between each 1

snav69 · « **Reply #6 on:** March 10, 2012, 06:25 PM »

Quote from: rollin72 on March 10, 2012, 05:48 PM

10 spokes between each 1

36 spokes so surely 12 between each

rollin72 · « **Reply #7 on:** March 10, 2012, 07:13 PM »

the decal takes up a couple of spokes you div

Betty · « **Reply #8 on:** March 10, 2012, 07:14 PM »

Just put em where ya want

All three next to each other...

snav69 · « **Reply #9 on:** March 10, 2012, 07:42 PM »

Quote from: rollin72 on March 10, 2012, 07:13 PM

the decal takes up a couple of spokes you div

Not if you put the 12th spoke in the centre of the decal

rollin72 · « **Reply #10 on:** March 10, 2012, 07:49 PM »

Quote from: Snav on March 10, 2012, 07:42 PM

Quote from: rollin72 on March 10, 2012, 07:13 PM
the decal takes up a couple of spokes you div

Not if you put the 12th spoke in the centre of the decal

snav69 · « **Reply #11 on:** March 10, 2012, 07:55 PM »

Gnarlyscoots · « **Reply #12 on:** March 10, 2012, 07:57 PM »

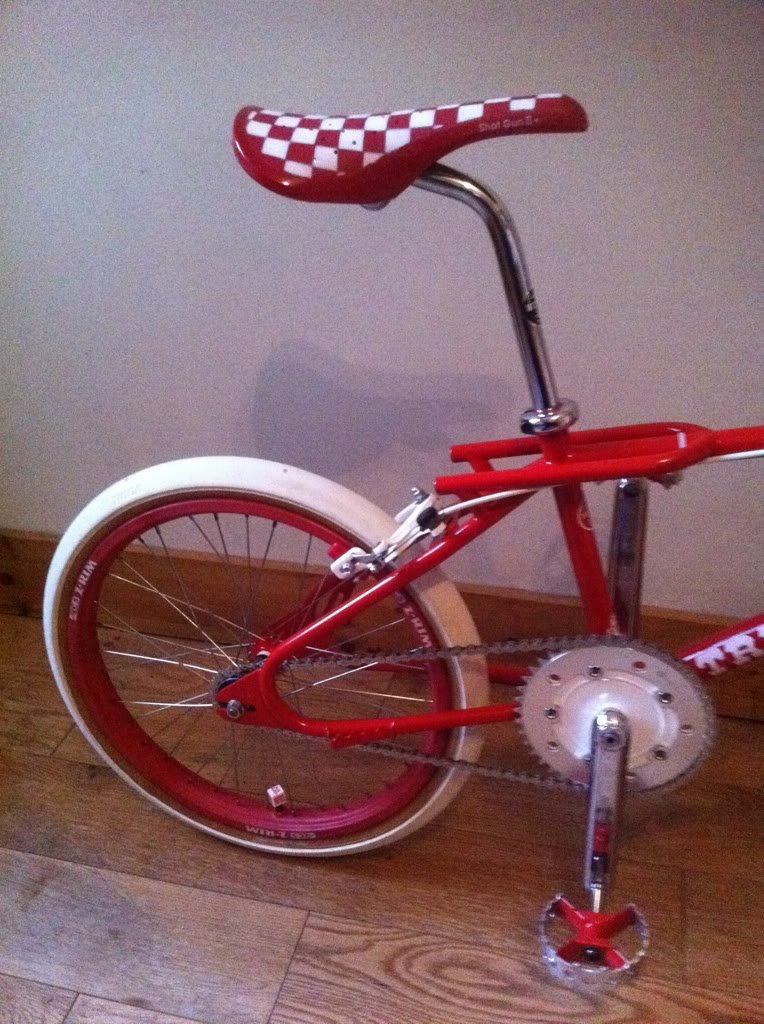

Dan, this an original stamped version matey. Hope this will help with the positioning of the decals

snav69 · « **Reply #13 on:** March 10, 2012, 07:58 PM »

Hmmmm every 12 spokes i see

Retrodan72 · « **Reply #14 on:** March 10, 2012, 08:06 PM »

Terry mate, cheers for that, it's gonna be a massive help.

I was gonna start with centralising one across the valve hole.

BENDYCAT ELEVENTEEN · « **Reply #15 on:** March 10, 2012, 08:11 PM »

just use the string

still think they look cool with the decal over the valve

rad_pitt · « **Reply #16 on:** March 10, 2012, 08:48 PM »

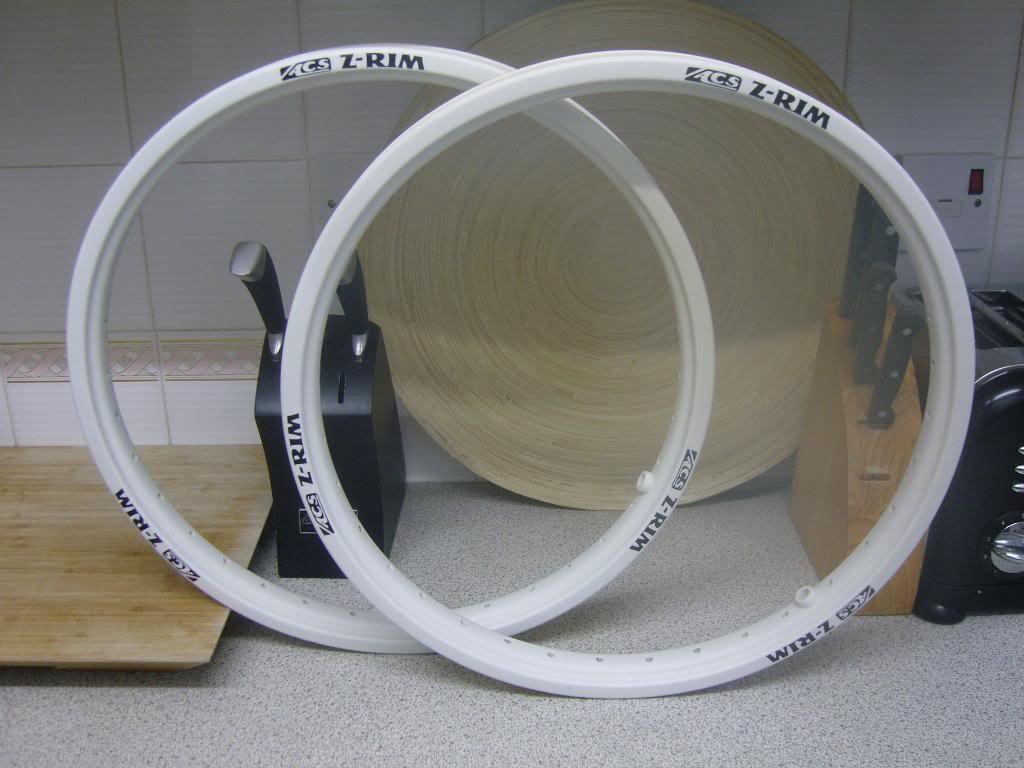

Adam's NOS Z rims are stamped over the valve hole Dan

Retrodan72 · « **Reply #17 on:** March 10, 2012, 08:55 PM »

rad_pitt · « **Reply #18 on:** March 10, 2012, 08:58 PM »

I think it was probably a case of stamp em anywhere - because they didn't realise we'd all be anal bastards 30 years on

Retrodan72 · « **Reply #19 on:** March 10, 2012, 09:45 PM »

Quote from: rad_pitt on March 10, 2012, 08:58 PM

I think it was probably a case of stamp em anywhere - because they didn't realise we'd all be anal bastards 30 years on

you're probably right there Tom, who give a fcuk.

Retrodan72 · « **Reply #20 on:** March 10, 2012, 10:04 PM »

Bonus - just looked at mine on my DP and even after the cleaning/sanding/dyeing process they had last November, you can still see a feint image of where the original dye was.

Mine are in the same position as Terry's.
