Author Topic: Redline (Read 79548 times)

willchurton · « **Reply #25 on:** November 02, 2007, 11:40 PM »

Rebuilt my sons 440 expert (he got bored with it) I used to have a series three in the eighties so rebuilt it to remind me of that..not too bad realy..

From this

To This..

Wienman aero rims, comp 3 type tyres, Twin pinch 401s black44t flight ring, cougar uni seat, tuff neck type clamp, shimano cantilever, RL six bolt stem RL bars, type 4 lever Ame grips, red dirtskirt, red tange headlock...........

b45t4rd · « **Reply #26 on:** December 07, 2007, 07:58 PM »

Mid 80's PL 20
Forklifter bars
DK XL stem
GT Epoch headset
AME tri grips
Tech 5 lever, Nippon caliper
Kashimax aero seat
Suntour clamp
Sugino opc, tuff neck chainwheel
Suntour XCII pedals
Ukai rims, suzue sealed hubs

Coastvl · « **Reply #27 on:** February 10, 2008, 10:49 AM »

Heres what i did with an RL440 I had lying around. I built it to ride so my other bikes didn't cop it.
Most of the parts are NOS or off my bikes from bitd. I still need to re-nickel the Proline bars.
RL440 frame and forks (forks NOS)
Takagi crank and spider (NOS)
Redline Brute Stem (mine from bitd)
Skyway Tuff II's (coaster brakes)
Comp st tires
Dia Compe 990 front brake, Tektro lever.
Oury grip copys
JC SS seatpost
No name seat.

bmx xxx · « **Reply #28 on:** February 17, 2008, 06:26 PM »

this is my 600a redline hope you like.
i think it turned out very sweet

redline 600a frame & forks
redline bars
redline 401 crank with pro neck chainring and power disc
suntour stem
white headset.
kashimax rs seat.
mx 901s beake set.
mx hinged seat clamp
araya areos with suntour hubs and white spokes

waiting for the pedset,
cheers gary

ron burgundy · « **Reply #29 on:** March 02, 2008, 05:37 PM »

1981 Carrera

munners · « **Reply #30 on:** March 22, 2008, 11:25 AM »

1984 Redline 102b.

Pikachu · « **Reply #31 on:** March 24, 2008, 01:25 PM »

1984 REDLINE 500a

Stem: REDLINE Brute Stem
Handlebar: REDLINE FORKLIFTER (with HARO and Redline Stamp Rare !)
Seatpost: REDLINE Layback
Seatpost Clamp: Suntour
Brake: Dia-Compe MX1000 Chrome
Brake Pads: Skyway
Crank: Unstamped Profile 175
Chainwheel: Tuf Neck Powerdisc & Tuf Neck Chainwheel
Pedals: MKS BM10
Chain: Izumi
Grips: A'ME
Seat: Kashimax Aero
Rim: UKAI HP 48s Chrome
Hubs: Suzue SB
Headset: HATTA
HeadLock: TANGE
Tires: National Knarler Knobby

manlio · « **Reply #32 on:** July 18, 2008, 04:52 PM »

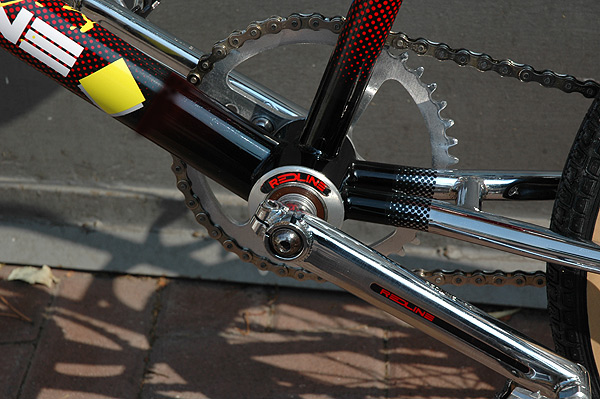

REDLINE RL 20 II 1987
BEFORE

AFTER

REDLINE FORKLIFTER BAR
REDLINE FORKLIFTER STEM
AME GRIP
NIPPON BRAKE
REDLINE FLIGHT SINLGE PINCH
REDLINE FLIGHT SPROCKET 43t
PEREGRINE 48 HP WHEELS
HARO PEGS
DIA COMPE TECH 5 LEVER
TANGE HEADSET

greentoad · « **Reply #33 on:** August 22, 2008, 11:27 AM »

greentoad · « **Reply #34 on:** August 22, 2008, 11:34 AM »

ST20

Sisters -

double chevron · « **Reply #35 on:** January 05, 2009, 02:41 PM »

Redline PL24 1983

OG chrome and finish on most of the parts, if not NOS

Parts list:

F+F:Redline PL24 1983 original chrome
Wheels: UKAI speedlines w/ Suntour hubs, sealed
Tyres: Comp III Mitsuboshi/Tioga
Bars: Redline cruiser
Stem: Redline Brute
Grips: Oury
Brakes: Dia Compe MX 900
Seat: Elina
Seatclamp: Dia Compe
Cranks: Sugino OPC
Pedals: KKT AMX

http://www.radbmx.co.uk/forum/index.php'topic=76700.0

meticulous · « **Reply #36 on:** June 24, 2009, 07:28 PM »

trasher · « **Reply #37 on:** July 16, 2009, 11:04 PM »

redline 1983 pl20 (700p stu thompson rep)

Redline · « **Reply #38 on:** November 26, 2009, 06:04 PM »

1981 USA Redline Proline II Frame & Forks (early version with thicker bottom bracket, thicker rear dropouts and no chainstay brace)
NOS Redline Proline V Bars
NOS Redline Brute Stem
NOS Redline Pad Set
NOS Redline Fluted Seatpost
NOS Elina Seat
NOS Sugino 400 180mm Flight Cranks with NOS Sugino Sealed BB and NOS 44t Suntour Chainwheel
NOS Suntour MP-1000 Sealed Pedals
NOS Izumi Nickel Chain
NOS Ukai Rims laced to NOS Suntour Sealed Hubs with NOS Asahi Stainless Spokes
NOS Knarler Knobby Tyres
NOS Dia-Compe MX900 Caliper with NOS DC Cable and NOS Tech 3 Lever
NOS Oakley II Grips

neiljonarcus · « **Reply #39 on:** December 05, 2009, 05:29 PM »

PRO-STYLER RL-20 1985

Frame: reldline rl20 pro-styler chromoly
Forks: redline mk1 chromoly
Handlebars: tioga v chromoly,
Stem: redline forklifter Alloy clamp with chromoly shaft
Grips: Oakley b1b
Headset: hatta, Black tbf
wheels: white OGK JAPAN
Tyres: panaracer freestyle gumwall 1.75
Brakes:Dia-Compe 890, front and rear hipka white
brake blocks: dia-compe white
Levers: Dia-Compe Tech 4

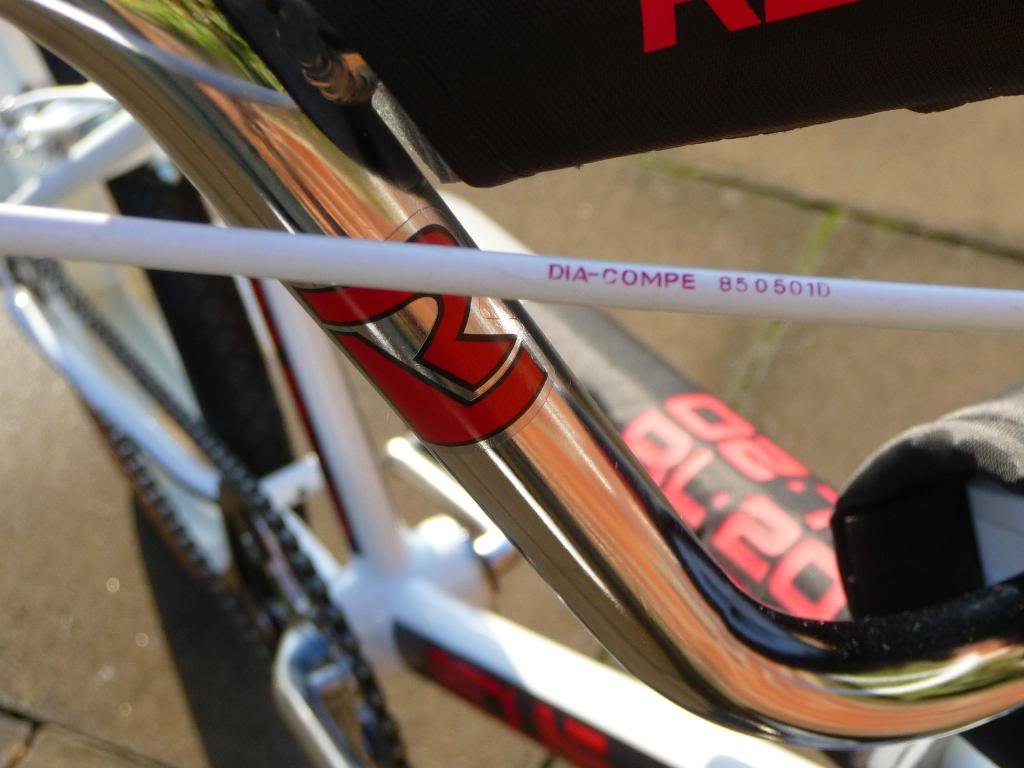

Cable: Dia-Compe white dated 1985
Pedals: kkt rmx black alloy
Crank: sugino 1 peice Chromoly, 175mm
Bottom Bracket: yst black and chrome
Chainring: Sugino aluminium 44T
Spider: Sugino, alloy mx5 del,s decals
Freewheel: Suntour, 16T
Chain: izumi black
Seat: pereigrine white
Seat Post: chromoly
Seat Post Clamp: suntour black and chrome
pad set : firebird special black red and grey 3 star

daz bmx it! · « **Reply #40 on:** December 27, 2009, 10:51 AM »

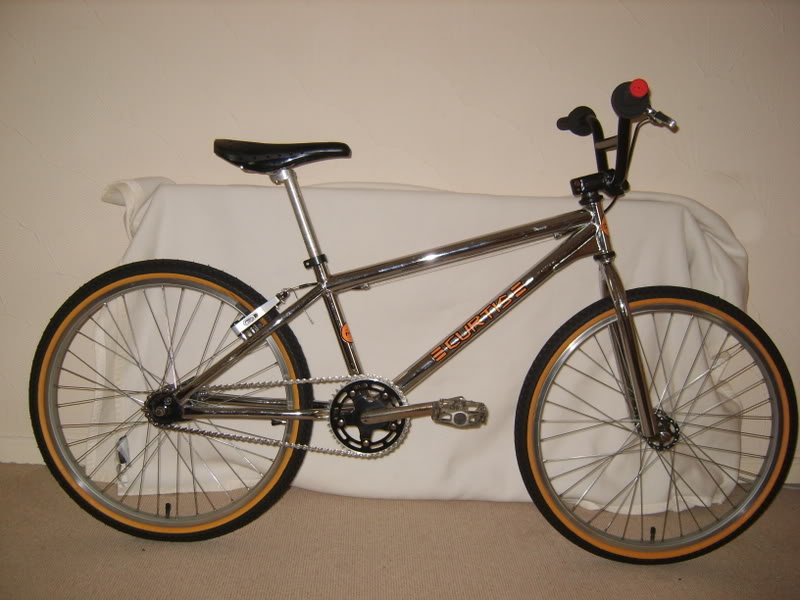

REDLINE CRUISER 'JOHN PURSE' SIG MODEL (with Curtis decals

)

erdalicious · « **Reply #41 on:** January 26, 2010, 08:07 PM »

my redline pl20 - full original
new tioga tyres mounted, i have the og tyres from bitd,

meticulous · « **Reply #42 on:** January 27, 2010, 06:28 PM »

glenboy · « **Reply #43 on:** February 11, 2010, 10:45 PM »

Heres mine
Redline frame and forks PL-20 oval redline stamp under bb and 6 digit number starting with 5 i reckon its 1984
redline flight 175 crank
phil wood spider
mx1000 rear brake
ukai blue rims with polished sides and red,white and blue bullseye hubs
kkt lmx magnesium pedals
tuf neck mini stem
redline bars
ame grips
etc

deli_mas · « **Reply #44 on:** March 10, 2010, 03:51 PM »

My 1985 Redline 800P Proline

Frame: 1985 Redline 800P Proline
Forks: Redline Mid School
Wheels: Araya with Shimano Hubs
Cranks: Sugino cr-mo OPC with Sugino 44T chainwheel
Pedals: KKT AMX
Brakes: Shimano Tourney with DX levers
Stem: Forklifter
Bars: Forklifter no tabs
Seat: Elina
Seat post: Redline fluted
Seat clamp: BMX DC style
Grips: Tange
Chains: Izumi
Tires: Cheng Shin 20x1.75

Macmania · « **Reply #45 on:** March 21, 2010, 07:50 PM »

1982 REDLINE MX-II Early USA Manufactured (Pre Oval Redline Stamp on BB)

Parts List
1982 Redline MX-II Frame and Forks
Redline V-Bars (Stamped)
Beartrap II Headset
Redline Brute Stem
Oakley B2 Grips
Dia Compe MX900 Brake with Tech III Lever
MKS Footjaw Pedals
Kashimax MX Seat
Suntour Seat Clamp
Izumi Chain
Redline Chainwheel
Redline 401 Cranks (Single Pinch Full Wrap)
Araya 7X Wheels
Tioga Comp III's
Repop Pad Set (Firebird Steve)

osnd · « **Reply #46 on:** October 18, 2010, 09:44 PM »

My 1984 Redline PL-20

Parts List:

PL-20 frame and fork
Nitto bars
Brute stem
Uni seat/post
DC clamp
Weinmann brake/DC Tech3 lever
401 cranks
Hutch pedals
Izumi chain
Z-Rims with Suzue hubs
IRC tyres
Tange grips
Redline pads
Aero numberplate

osnd · « **Reply #47 on:** October 18, 2010, 10:45 PM »

My 1985 Redline 800p Proline

Parts List:

Proline frame and fork
Forklifter bars/stem/numberplate
Tioga headset
Elina Flyte Tech seat
1st gen Hutch clamp
Hutch seat post
DC 901/Tech 4 lever/DC cable
401 cranks (185mm)with SB bb
Hutch pedals
Izumi chain
Araya 7x rims on Suzue SB hubs
Tioga tyres
A'ME grips
Redline pad

woody allen bars · « **Reply #48 on:** November 14, 2010, 06:50 PM »

Frame/fork:   1984 Redline PL20 serial no. 508544
Headset:      Beartrap 2 with Suntour Headlock
Stem:      Tuf-Neck
Handlebar:   VDC Woody Itson
Grips:      A'me Tri
Lever:       D-C Tech III
Cable:       D-C
Rear brake:   D-C MX1000 with centralising
Seat:      Elina lightning bolt
Seat post:   Fluted chro-moly
Clamp:      Suntour
BB set:      Tioga sealed
Cranks:       Tioga Task Force 175mm
Pedals:      Shimano DX
Spider:      Tuf-Neck powerdisk
Chainwheel:   PPP 45t
Chain:      Isumi black/chrome 1/2"
Tyres:      Mitsuboshi Grippa 1.75"
Rims:      Araya 7X shinyside
Spokes:      DT stainless
Front hub:   Suntour sealed
Rear hub:      Suntour sealed
Freewheel:   Shimano 16t chrome
Pads:      California Lite

More info here:
http://www.radbmx.co.uk/forum/index.php'topic=114757.0

Shiner · « **Reply #49 on:** April 27, 2011, 08:43 AM »
