Author Topic: Redline (Read 79550 times)

Nosnod · « **on:** July 19, 2005, 09:25 PM »

Owner: Scott Donson (nosnod)

Frame & Forks: 1984 Redline 600a
Wheels: Araya 7x with SR Hubs
Cranks: Redline 401 flight with Redline chainwheel
Pedals: Suntour XC-II
Brakes: Dia-compe MX1000 with Tech3 levers
Stem: Suntour powerstem
Bars: GT Pro XL
Seat: Elina Flyte tech
Seat post: Elina
Seat clamp: Suntour
Grips: Oakley .5's
Pads: Redline vinyl
Plate: Haro techplate

Bren Gunn · « **Reply #1 on:** July 19, 2005, 10:50 PM »

MXII

MXIII

lazychubs · « **Reply #2 on:** July 25, 2005, 09:23 PM »

redline rl20b
araya wheels
michelin tyres
proline cranks
peregrine stem unknown bars
mx 1000 copys with dx copy levers
ame grips

troll · « **Reply #3 on:** August 19, 2005, 12:55 PM »

Redline MX11 1979

Frame & Forks: 1979 Redline MX11
Wheels: Skyway tuff 2's
Cranks: Maxy cross 3 piece crank
Pedals: MKS BM10
Brakes: Dia-compe MX1000 with Tech 3 levers
Stem: Redline Brute
Bars: win V bars
Seat: Elina UL
Seat post: Elina
Seat clamp: Suntour
Grips: Oakley F1's
Pads: Redline vinyl orig

Owner Mark Cooke (Troll)
www.troll.org.uk

romboijon · « **Reply #4 on:** August 28, 2005, 11:14 PM »

rl 340

ash · « **Reply #5 on:** October 15, 2005, 11:10 PM »

sanderson · « **Reply #6 on:** November 22, 2005, 08:57 PM »

karl sanderson
redline pl20 1985
redline 401 cranks/redline 44 chainring
GT bars
DK xxl stem
Pro class wheels
mx1000
suntour pedals with modified cages
ame grips
skyway hot seat
comp 3
pl20 stickers needed?
used and abused for many years but still looking good

bmx-796 · « **Reply #7 on:** March 05, 2006, 02:21 PM »

zinges83 · « **Reply #8 on:** April 08, 2006, 11:19 PM »

I have built this bike from the spec from an old photo of my 600a i rode in very early eighties, exactly the same spec ( my Grandad took me to Alpine Action in Notting Hill Gate to buy it ) (rode it at the Westway a few times)
Hope you like it

RATTY · « **Reply #9 on:** May 23, 2006, 07:15 PM »

RATTY · « **Reply #10 on:** September 18, 2006, 11:48 PM »

My Redline RL20b, I got the frame and forks off ebay (we think its lazychubs old one see earlier posting)
This is a pic of it with black z rims, 175 2 bolt flites, fork lifter stem, acs rotor, kashimax saddle, dia compe MX1000 front and rear.

Heres some pics with Araya shiny side 7X wheels

Sanmarcopizza · « **Reply #11 on:** September 19, 2006, 05:03 PM »

Owner: Cheekythirtysix

Here's the spec on my ultimate ride!! Cost me a small fortune... but worth every penny!!!

NOS 1980 USA Made Redline MXII Frame & Forks 4130 Cro Mo (super rare with unstamped bottom bracket, later models were built in Japan and had a Redline oval logo stamped on the bottom bracket)

Redline CroMo V-Bars (stamped)

NOS Redline "Brute" stem

NOS AME Tri Grips

NOS Dia-Compe 890 Rear Brake with Pre-Bent Lever

NOS Redline CroMo fluted seatpost

NOS Kashimax MX seat

NOS Suntour seat clamp

NOS Sugino Maxy Cross Crankset

NOS Suntour XCII pedals with sealed precision bearings

NOS 1982 1st generation USA Made ACS Z Rims (unstamped)

NOS Suntour Sealed Precision Bearing Hubs

NOS Mitsubishi Comp III tyres

NOS Redline vinyl padset with "snaps"

John

snav2000 · « **Reply #12 on:** September 23, 2006, 03:40 PM »

Hi , This is my Baby rebuilt for me buy my brother snav69 , Hope you like

I may ask him for a trade for his 7UP Bike

Ste

jimwise68 · « **Reply #13 on:** October 06, 2006, 09:58 PM »

Redline PL-20 1984
NOS Red Ukai Speedlines
NOS Black Comp III
NOS Red MX900 - Tech 3 levers (dia-compe white cables)
NOS Red Footjaw pedals
NOS Red Kashimax Aero
Original Redline fluted seatpost
NOS Red Suntour seat clamp
NOS Red GT Epoch headset
SR Chainring
Single Pinch Redine 401 Flites
NOS Red Oakley B2 grips
Redline Brute Stem
Powder coated Tioga bars (Thanks superbikedan)

snav69 · « **Reply #14 on:** November 09, 2006, 04:48 PM »

Redline 600 cxl , Thanks to Bren Gunn for all the information

Paul

RATTY · « **Reply #15 on:** December 16, 2006, 12:46 AM »

MY SECOND REDLINE PL20

1983 redline PL20 frame and forks
Redline brute stem
Redline Vee bars
Redline flite cranks 185mm single pinch
techmatic sealed BB
original redline pads
comp 3 tyres
Suntour sealed hubs with ukai speedline rims
Elina LB seat
redline fluted post
MKS BM5 pedals "rat traps"
MX1000 brake with Shimano DX lever

This is still a work in progress, I want to complete it as an early (1981ish) Stu Tompsen replica.
Thanks to roonga, azusakakid, djbenice for help with the parts and mattdub, brenngun and macmark for advice an pics.

The frame has never been worked on, and still has the original usa bike shop sticker.

gt0733 · « **Reply #16 on:** December 17, 2006, 12:05 PM »

very nice ratty. looks quite similar to mine

1983 proline II frame and fork
brute stem
redline "v" bar
grab on 2 grips
tange aw27 headset
tange headset lock
redline 180mm cranks
sugino 44t chainwheel
kmc chain
KKT lightning pedals
araya 7x rims
suntour high flange hubs
shimano16t freewheel
aero seat
cro-mo seat post
tange clamp
copy comp 3 tyres
dia compe mx 1000 caliper
dia compe pre bent lever

RATTY · « **Reply #17 on:** March 17, 2007, 08:40 PM »

REDLINE PL24

Tolly · « **Reply #18 on:** May 27, 2007, 03:28 PM »

1974 Redline Squareback - 151st Frame and Fork to be made in '74 but purchased in 1975
Original nickel frame and fork
Redline white decals
Prototype RL stem
DG bars
Oury Grips
Speedo pads
Mesinger seat
Schwinn post
Schwinn seatpost clamp
Campagnolo cranks
Union pedals
Araya 7b rims
Double butted spokes
Cook Bros. front hub
Schwinn Red line Bendix 76 coaster brake
Cheng Shin knobbies

chrishil1 · « **Reply #19 on:** June 05, 2007, 08:36 AM »

Redline RL440 1995

Tolly · « **Reply #20 on:** August 08, 2007, 01:54 AM »

Here is a replica with actual parts off the original bike pictured on the cover of Bicycle MotoCross Action in 1979 ridden by Dennis "The Red Baron" Dain.

Frame - RedLine Proline
Fork - Redline Proline
Bars - Redline Proline
Stem - Redline double clamp
Seat Post - Redline Proline
Padset - Redline Proline
Headset - Tange
Grips - Oakley II's
Caliper - Dia-Compe 890
Seat - Kashimax
Seat Post Clamp - Powerlite
Rims - Araya
Tires - Cheng Shin
Front hub - Suntour low flange
Read hub - Redline Bendix coaster brake
Crank - Ashtabula
Bottom Bracket - Schwinn
Pedals - KKT
Spider - Takagi
Chainwheel - Takagi
Chainwheel bolts - Addicks
Chain - Schwinn
Number plate - Dennis Dain one of a kind!

D.T.L.flyKUWA.. · « **Reply #21 on:** September 01, 2007, 04:42 PM »

''1979''... Red Line... MX-II ...

kowalski · « **Reply #22 on:** September 16, 2007, 10:25 PM »

1983 redline pl20 (85 decals and pads)
thanks to everyone who helped with this build i hope you all like it

f+f 1983

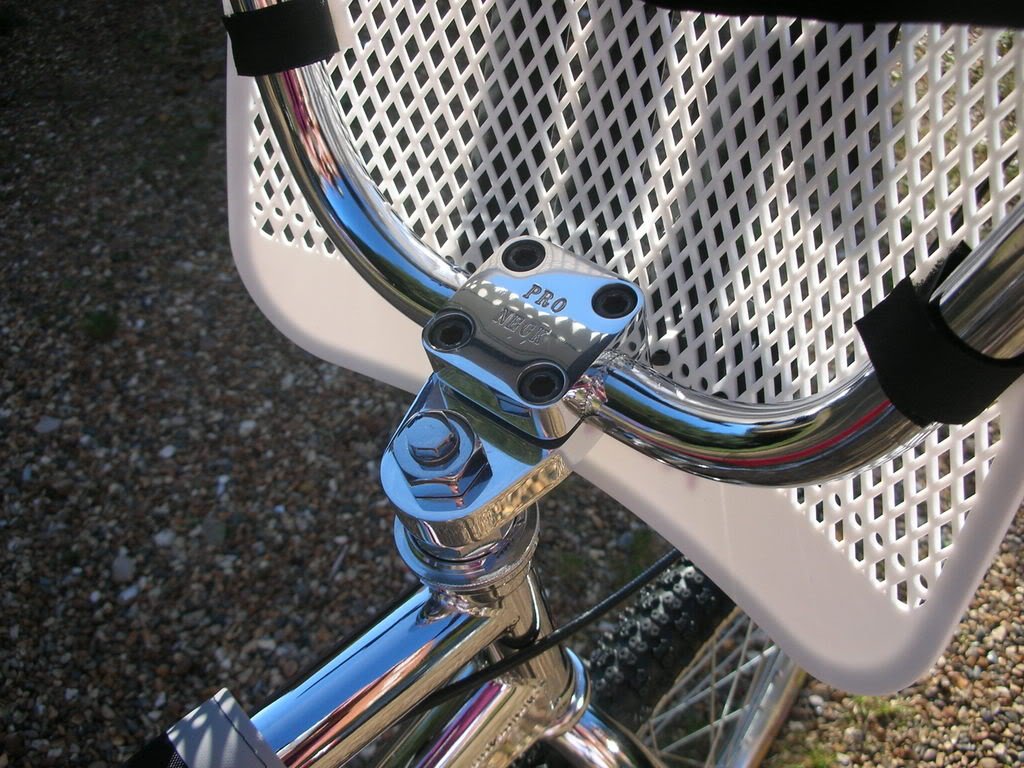

stem= pro-neck
cranks = redline flight 401's 185mm
headset= tioga beartrap 2
bars= tioga v's
grips= am'e tri's
brakes= mx 1000 + tech 3 lever
chainwheel= 44t redline bubble script
seatclamp= suntour
seatpost= redline fluted
seat= kashi aero
pedals= crupi

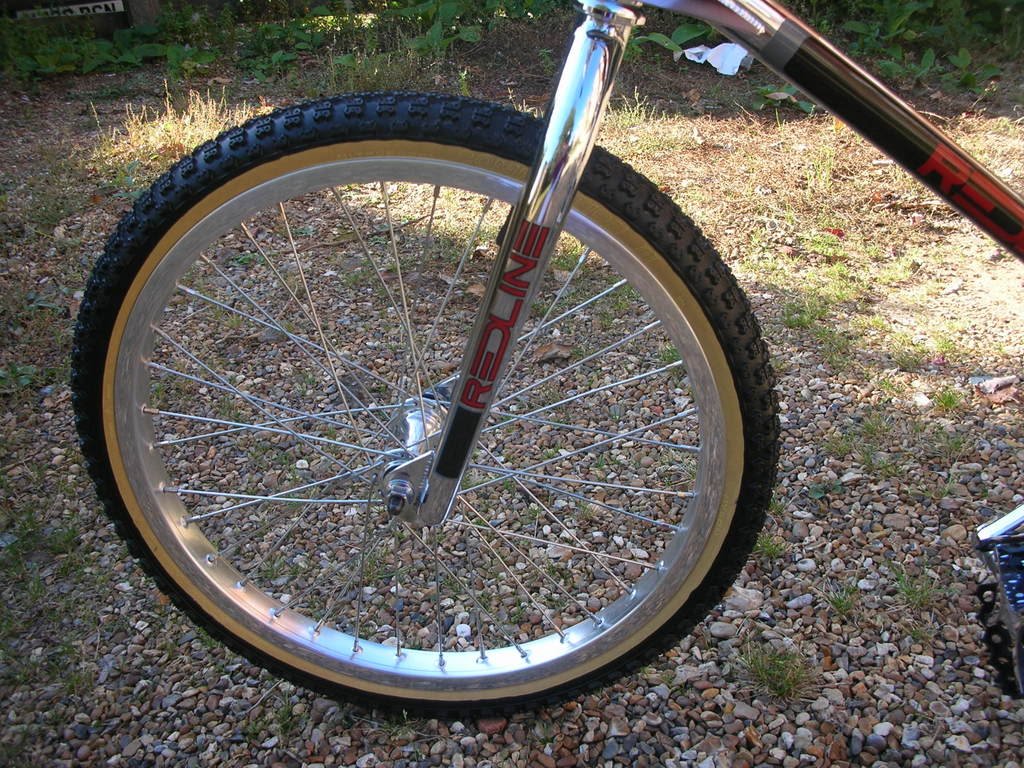

wheels= ukai's 20x1.75
hubs= suzue small
tyres= comp 3 rainbows
plate= haro tech
chain= new school for now.... boo!!
pads= repops

baldbmxer · « **Reply #23 on:** October 29, 2007, 06:26 PM »

REDLINE RL20 PROSTYLER

baldbmxer · « **Reply #24 on:** October 29, 2007, 06:33 PM »

REDLINE PL24

BEFORE.....

AFTER.....
