Author Topic: Hutch donut clamp ! info needed on bolt - see pic (Read 2095 times)

BENDYCAT ELEVENTEEN · « **on:** May 19, 2010, 06:31 PM »

I got what i belive to be a hutch donut (came on that goose trickstar)

i have just polished it up - went to get a new bolt for it but ? it seem to be a different thread size cut into the clamp - i was going to use a m8 30mm new bolt

so was the bolt used on hutch stuff different to now ?

any one have a spare bolt for sale ?

any info boys ? please help

cheers B

before

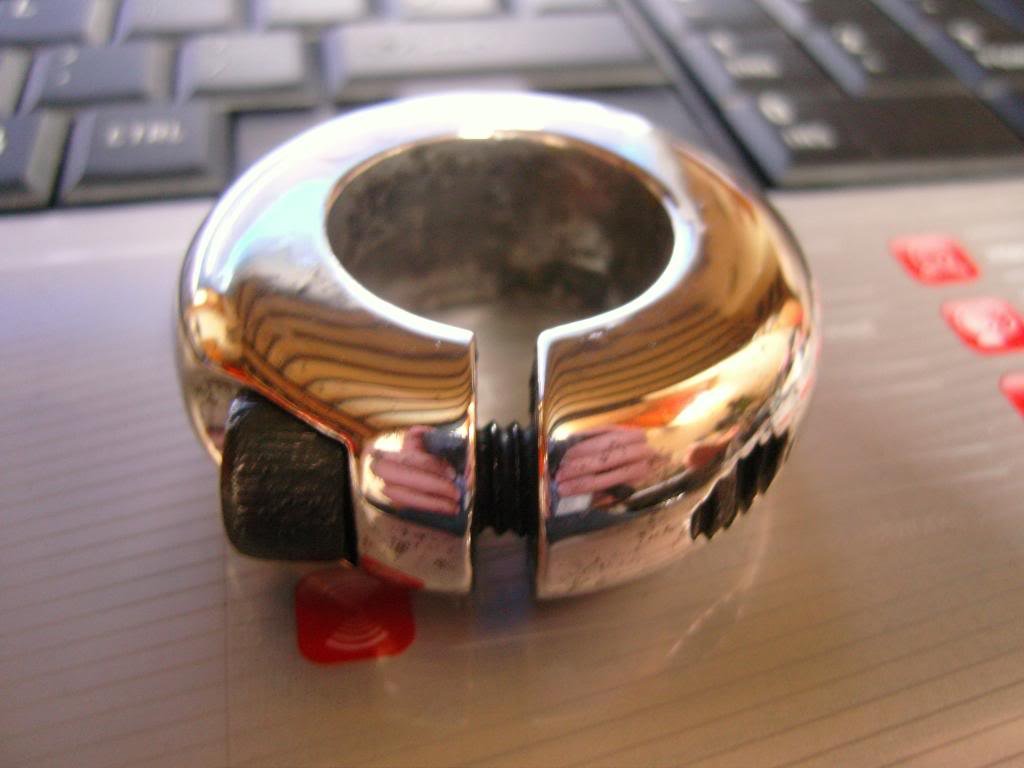

after

HUTCHMAN · « **Reply #1 on:** May 19, 2010, 06:36 PM »

possibily 5/16 UNC.

HUTCHMAN · « **Reply #2 on:** May 19, 2010, 06:51 PM »

if my 5/16 UNC tap turns up from Snap On tomorrow,i'll try to remember to let you know.

Peter J · « **Reply #3 on:** May 19, 2010, 07:00 PM »

Its deffo not Metric.....outside europe...no bugger uses it

I would say UNC is a safe bet as they were made in the US by US engineers.

http://cgi.ebay.co.uk/10-24-X-5-8-UNC-STAINLESS-ALLEN-HEAD-CAP-BOLTS-4-PCS-/150433930539?cmd=ViewItem&pt=UK_DIY_Material_Nails_Fixing_MJ&hash=item23068f9d2b

mark 2 · « **Reply #4 on:** May 19, 2010, 07:07 PM »

a stem bolt would do it, like Dave said , 5/16 x 1" UNC

BENDYCAT ELEVENTEEN · « **Reply #5 on:** May 19, 2010, 09:34 PM »

so it's deffo a 5/16 x1" that i need ?

any one have a hutch donut clamp ? and is it a gen 1 - which one did the stamp with a H and did they put Hutch on it - any info ?

cheers B

HUTCHMAN · « **Reply #6 on:** May 19, 2010, 09:38 PM »

any hutch clamp with ANYTHING stamped into it is not US made... Hutch Hi Caliber,

animal · « **Reply #7 on:** May 19, 2010, 09:49 PM »

9/16 UNC bud as far as I know . Had 2 get 1 4 one of mine

BENDYCAT ELEVENTEEN · « **Reply #8 on:** May 19, 2010, 09:50 PM »

This one has nothing on it at all

i thought there were different shapes to them ?

HUTCHMAN · « **Reply #9 on:** May 19, 2010, 09:56 PM »

could be wrong,but from the pics,yours looks like a full radius US made. what you reakon Glen?

BENDYCAT ELEVENTEEN · « **Reply #10 on:** May 20, 2010, 01:16 AM »

5/16 or 9/16

HUTCHMAN · « **Reply #11 on:** May 20, 2010, 08:29 AM »

I'ts not 9/16, thats over 1/2 an inch.

BENDYCAT ELEVENTEEN · « **Reply #12 on:** May 20, 2010, 10:37 AM »

http://cgi.ebay.co.uk/10-24-X-5-8-UNC-STAINLESS-ALLEN-HEAD-CAP-BOLTS-4-PCS-/150433930539?cmd=ViewItem&pt=UK_DIY_Material_Nails_Fixing_MJ&hash=item23068f9d2b

so link above is what i'm looking for - just want to get this right

(it's like trying to find the right size nut to go into tange clamps

)

cheers B

mark 2 · « **Reply #13 on:** May 20, 2010, 10:39 AM »

That's not it at all, 5/16 x 1" UNC.

BENDYCAT ELEVENTEEN · « **Reply #14 on:** May 20, 2010, 11:06 AM »

first one to find a right link will get a big thank you and show that you are the best

HUTCHMAN · « **Reply #15 on:** May 20, 2010, 11:17 AM »

http://cgi.ebay.co.uk/Stainless-Steel-UNC-Allen-Bolts-5-16-x-1-6-Pack-/370243768680?cmd=ViewItem&pt=UK_CarsParts_Vehicles_CarParts_SM&hash=item56343f9168

I ain't the best though.

BENDYCAT ELEVENTEEN · « **Reply #16 on:** May 20, 2010, 11:42 AM »

oh ! you are

can i annidise the bolt ?

HUTCHMAN · « **Reply #17 on:** May 20, 2010, 11:55 AM »

Nope,you cant anno steel,only aluminium.

mark 2 · « **Reply #18 on:** May 20, 2010, 11:57 AM »

Quote from: HUTCHMAN on May 20, 2010, 11:17 AM

http://cgi.ebay.co.uk/Stainless-Steel-UNC-Allen-Bolts-5-16-x-1-6-Pack-/370243768680?cmd=ViewItem&pt=UK_CarsParts_Vehicles_CarParts_SM&hash=item56343f9168

I ain't the best though.

And the bonus is you get some fresh stem bolts out of that 6 pack too. Fits most USA made OS stems, don't force the friggers though.

HUTCHMAN · « **Reply #19 on:** May 20, 2010, 07:27 PM »

just to conform,i got my tap from Snap On today,i can confirm it is 5/16 unc. wound straight in. Not a bad price, £5.52.

BENDYCAT ELEVENTEEN · « **Reply #20 on:** May 21, 2010, 01:40 AM »

cheers guys - i also have a Pro Neck II that could use some new bolts

well get some of that link

cheers yer all
